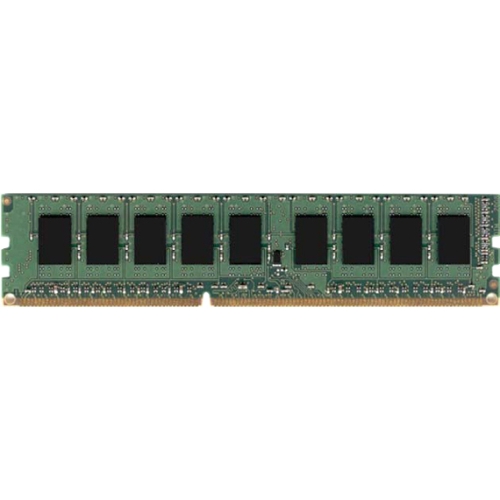

Dataram 4GB DDR3 SDRAM Memory Module DVM18R1S8/4G

>DVM18R1S8/4G is a registered 512Mx72 memory module, which conforms to JEDEC's DDR3-1866, PC3-14900 standard. The assembly is Single-Rank comprised of nine 512Mbx8 DDR3 SDRAMs. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Brand Name	Dataram
Manufacturer	Dataram Corporation
Product Name	4GB DDR3 SDRAM Memory Module
Manufacturer Part Number	DVM18R1S8/4G
Manufacturer Website Address	http://www.dataram.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Width	5.3"
Form Factor	DIMM
Length	1.2"
Number of Pins	240-pin
Memory Voltage	1.50 V
Memory Standard	DDR3-1866/PC3-14900
Memory Technology	DDR3 SDRAM
CAS Latency	CL13
Memory Size	4 GB
Error Checking	ECC
Signal Processing	Registered
