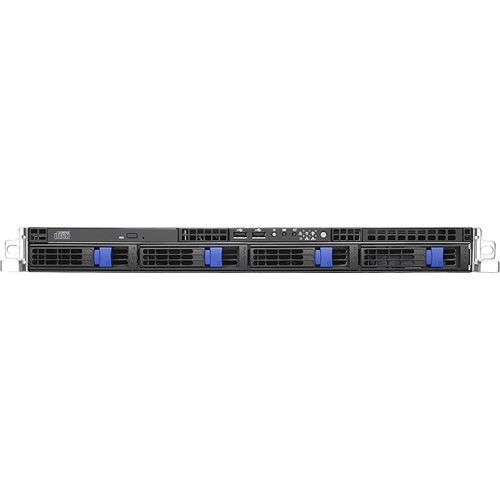

Tyan Barebone System B7002G20V4H GT20 (B7002)

The hottest 1U DP server platform features Intel Xeon processor within providing greatest cost benefit to various applications. Tyan GT20-B7002 supports up to 64GB DDR3 RDIMM memory, (4) 3.5" hot-swap SATA-II HDDs, (2) GbE, (1) full-sized, true PCI-E Gen.2 x16 slot, and onboard IPMI with iKVM features. This system is perfectly fit for general file/print services, web-hosting, data center, search engines, virtualization, and workgroup HPC applications.

Product Type	Barebone System
Product Series	GT20
Brand Name	Tyan
Manufacturer	Tyan Computer Corp
Product Model	GT20 (B7002)
Product Name	GT20 (B7002) Barebone System
Manufacturer Part Number	B7002G20V4H
Manufacturer Website Address	http://www.tyan.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	GT20 (B7002) Barebone System 1 x S7002GM2NR-LE Motherboard 1 x MB User's Manual 1 x BB User's Manual 1 x TYAN Installation CD 2 x CHSK-0370, LGA1366 CPU Heatsinks 1 x CRAL-0032, Sliding Rail Kit for KGT20 1 x CEAR-0120, Mounting Ear Kit 1 x M1232, 4-port SAS/SATA HDD Backplane and Fan Control Board 1 x Screw Pack 1 x CCBL-0310, US Type Power Cord 1 x CCBL-0300, EU Type Power Cord
Chipset Manufacturer	Intel
Chipset Model	5500
Number of Processors Supported	2
Processor Socket	Socket B LGA-1366
Processor Supported	Xeon
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2050
RAID Supported	Yes
Controller Type	Serial ATA/300
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Number of Total Expansion Slots	1
Number of PCI Express x16 Slots	1
VGA	Yes
Total Number of USB Ports	6
Memory Standard	DDR3-1333/PC3-10600
Memory Technology	DDR3 SDRAM
Maximum Memory	64 GB
Height	1.7"
Width	17.2"
Depth	22.4"
Rack Height	1U
Form Factor	Rack-mountable
Limited Warranty	3 Year
