Tyan Transport Barebone System B4985V50V8H-8P-E VX50 (B4985-E)

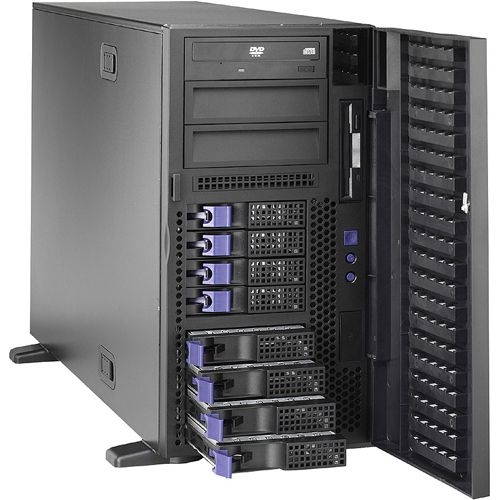

An uniquely designed 8P high-end server/workstation barebones that outputs 8 Dual-Core or Quad-Core AMD Opteron's processing power and up to 128GB of DDR2 DIMM memory capacity. VX50 B4985-E features (3) GbE LANs, (5) expansion slots, and (8) hot-swap capable SATA2 HDD bays. The convertible 5U/tower chassis is supported by 1620W (3+1) redundant power supply unit. It's an universal rack-mount and pedestal solution that provides superb performance for greater server needs.

Product Type	Barebone System
Product Series	VX50
Brand Name	Tyan
Manufacturer	Tyan Computer Corp
Product Model	VX50 (B4985-E)
Product Name	Transport VX50 (B4985-E) Barebone System
Product Line	Transport
Manufacturer Part Number	B4985V50V8H-8P-E
Manufacturer Website Address	http://www.tyan.com
Number of External 5.25" Bays	1
Number of Total Expansion Bays	10
Number of 3.5" Bays	1
Number of Total Expansion Slots	5
Number of PCI Express x16 Slots	4
Chipset Manufacturer	NVIDIA
Chipset Model	nForce4 Professional
Number of Processors Supported	8
Processor Socket	Socket F LGA-1207
Processor Supported	Opteron
Graphics Controller Manufacturer	XGI
Graphics Controller Model	XG20
Graphics Memory Capacity	16 MB
Graphics Controller Interface	PCI
Optical Drive Type	DVD-Reader
Optical Media Supported	DVD-ROM
RAID Supported	Yes
Controller Type	Serial ATA/300
Ethernet Technology	Gigabit Ethernet
VGA	Yes
Total Number of USB Ports	4
Memory Standard	DDR2-667/PC2-5300
Memory Technology	DDR2 SDRAM
Maximum Memory	128 GB
Height	8.7"
Width	16.7"
Depth	26.8"
Rack Height	5U
Form Factor	Tower
Limited Warranty	3 Year
