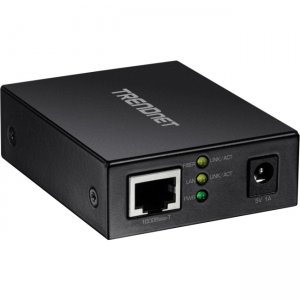

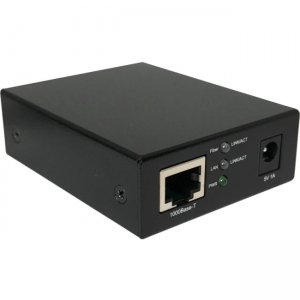

AddOn 1000Base-TX To 1000Base MMF ST 850nm POE Media Converter ADD-GMCP-SX-5ST

ADD-GMCP-SX-5ST is a Media Converter that converts a 1000Base-TX(RJ45) to 1000Base-SX(ST) via a 850nm multi-mode fiber (MMF) ST connector, which allows distance reach up to 550m. ADD-GMCP-SX-5ST provides a cost effective conversion from 1000Base Copper to 1000Base-SX fiber, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100meters / 330feets). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.

Product Type	Transceiver/Media Converter
Brand Name	AddOncomputer.com
Manufacturer	AddOncomputer.com
Product Name	1000Base-TX To 1000Base MMF ST 850nm POE Media Converter
Manufacturer Part Number	ADD-GMCP-SX-5ST
Manufacturer Website Address	http://www.addoncomputer.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-SX10/100/1000Base-T
Network (RJ-45)	Yes
Number of ST Ports	1
Total Number of Ports	2
Media Type Supported	Optical FiberTwisted Pair
Fiber Mode Supported	Multi-mode
Maximum Distance Supported	1804.46 ft
Height	1.5"
Width	5"
Depth	6"
Form Factor	External
Weight (Approximate)	1.40 lb
Limited Warranty	3 Year
