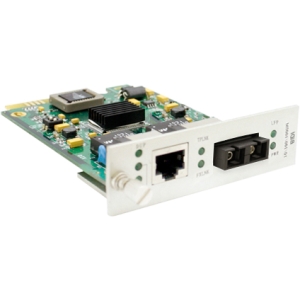

AddOn 100Base-TX to 100Base-LX SC SM 1310nm 20k Media Converter Card ADD-MCC1MSM20

ADD-MCC1MSM20 is a Media Converter Card that converts a 100Base-TX(RJ45) to 100Base-LX(SC) via a 1310nm single-mode fiber (SMF) SC connector, which allows distance reach up to 20km. It provides a cost effective conversion from 100Base Copper to 100Base-LX fiber, while extending the network reach beyond the 100m reach limitation of copper. ADD-MCC1MSM20 can be used in AddOn's Add Rack system (ADD-RACK-16, ADD-MRACK-16) or Standalone chassis (ADD-ENCLOSURE). Addoncomputer.com Media Converters and Network Interface Cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs. With our ADDON CERTIFICATION TEST Program, we can guarantee your product will work right the first time.

Product Type	Transceiver/Media Converter
Brand Name	AddOncomputer.com
Manufacturer	AddOncomputer.com
Product Model	ADD-MCC1MSM20
Product Name	100Base-TX to 100Base-LX SC SM 1310nm 20k Media Converter Card
Manufacturer Part Number	ADD-MCC1MSM20
Manufacturer Website Address	http://www.addoncomputer.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-TX100Base-LX
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
Media Type Supported	Optical FiberTwisted Pair
Fiber Mode Supported	Single-mode
Maximum Distance Supported	12.43 Mile
Height	1"
Width	3.5"
Depth	4.5"
Form Factor	Internal
Weight (Approximate)	3.20 oz
Limited Warranty	3 Year
