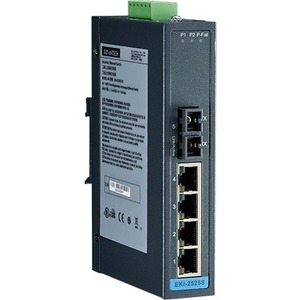

Advantech 4-port Ethernet Switch w/ 1-port 100FX Single-mode EKI-2525S-AE EKI-2525S

EKI-2525M/2525S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2525S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M provides one multi-mode fiber-optic ports, while the EKI-2525S provide one single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2525S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2525S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

Modular	No
Uplink Port	No
Stack Port	No
Total Number of Network Ports	4
Port/Expansion Slot Details	5 x Fast Ethernet Network
Product Type	Ethernet Switch
Manufacturer Part Number	EKI-2525S-AE
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	EKI-2525S
Product Name	4-port Ethernet Switch w/ 1-port 100FX Single-mode
Product Series	EKI-2000
Brand Name	Advantech
Network Technology	10/100Base-TX 100Base-X
Ethernet Technology	Fast Ethernet
Media Type Supported	Twisted Pair Optical Fiber
Country of Origin	Taiwan
Layer Supported	2
Form Factor	Wall Mountable DIN Rail Mountable
Height	5.5"
Width	1.2"
Depth	3.7"
Manageable	No
