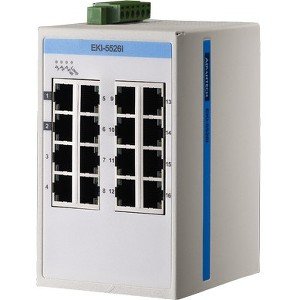

Advantech 16FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75 EKI-5526I-AE EKI-5526
Manufacturer: Advantech
Mfg Number: EKI-5526I-AE
SKU:
Model: EKI-5526
Condition:
New
Specifications
Product Type | Ethernet Switch |
---|
Brand Name | Advantech |
---|
Manufacturer | Advantech Co., Ltd |
---|
Product Model | EKI-5526 |
---|
Product Name | 16FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75? |
---|
Manufacturer Part Number | EKI-5526I-AE |
---|
Manufacturer Website Address | http://www.advantech.com |
---|
Packaged Quantity | 1 |
---|
Manageable | No |
---|
Environmentally Friendly | Yes |
---|
Environmental Certification | RoHS |
---|
Ethernet Technology | Fast Ethernet |
---|
Media Type Supported | Twisted Pair |
---|
Network Technology | 10/100Base-TX |
---|
Modular | No |
---|
Uplink Port | No |
---|
Stack Port | No |
---|
Total Number of Network Ports | 16 |
---|
Port/Expansion Slot Details | 16 x Fast Ethernet Network |
---|
Height | 4.7" |
---|
Width | 2.9" |
---|
Depth | 3.3" |
---|
Form Factor | Wall MountableDIN Rail Mountable |
---|
Weight (Approximate) | 1.54 lb |
---|
Limited Warranty | 5 Year |
---|
Layer Supported | 2 |
Description
The EKI-5526/I are the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5526/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
