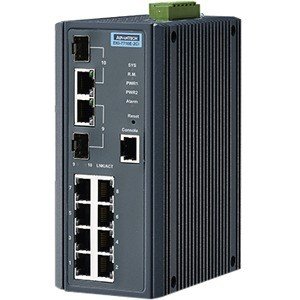

Advantech 8FE + 2G Combo Port Managed Ethernet Switch w/ Wide Temp EKI-7710E-2CI-AE EKI-7710E-2CI
Manufacturer: Advantech
Mfg Number: EKI-7710E-2CI-AE
SKU:
Model: EKI-7710E-2CI
Condition:
New
Specifications
| Product Type | Ethernet Switch |
|---|
| Product Series | EKI-7710 |
|---|
| Brand Name | Advantech |
|---|
| Manufacturer | Advantech Co., Ltd |
|---|
| Product Model | EKI-7710E-2CI |
|---|
| Product Name | 8FE + 2G Combo Port Managed Ethernet Switch w/ Wide Temp |
|---|
| Manufacturer Part Number | EKI-7710E-2CI-AE |
|---|
| Manufacturer Website Address | http://www.advantech.com |
|---|
| Packaged Quantity | 1 |
|---|
| Manageable | Yes |
|---|
| Environmentally Friendly | Yes |
|---|
| Environmental Certification | RoHS |
|---|
| Ethernet Technology | Gigabit EthernetFast Ethernet |
|---|
| Media Type Supported | Optical FiberTwisted Pair |
|---|
| Network Technology | 10/100Base-TX10/100/1000Base-TX |
|---|
| Number of Total Expansion Slots | 2 |
|---|
| Number of SFP Slots | 2 |
|---|
| Shared SFP Slot | Yes |
|---|
| Expansion Slot Type | SFP |
|---|
| Modular | Yes |
|---|
| Uplink Port | No |
|---|
| Stack Port | No |
|---|
| Total Number of Network Ports | 10 |
|---|
| Port/Expansion Slot Details | 8 x Fast Ethernet Network2 x Gigabit Ethernet Network2 x Gigabit Ethernet Expansion Slot |
|---|
| Height | 6" |
|---|
| Width | 2.9" |
|---|
| Depth | 4.1" |
|---|
| Form Factor | Wall MountableDIN Rail Mountable |
|---|
| Weight (Approximate) | 2.43 lb |
|---|
| Limited Warranty | 5 Year |
|---|
| Layer Supported | 2 |
|---|
Description
EKI-7710E-2C/2CI supports 8 Fast Ethernet ports and 2 Gigabit combo ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7710E series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7710E series is equipped with X-Ring which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability.
