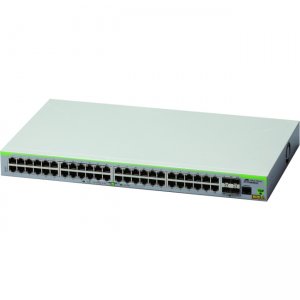

Allied Telesis CentreCOM Ethernet Switch AT-FS980M/52-10 AT-FS980M/52

Fast Ethernet Managed Access Switch The FS980M/52 features 48 x 10/100TX ports and 4 x 100/1000X SFP uplink/stacking ports. CentreCOM FS980M switches are cost-effective, fully managed, and can be stacked for increased resiliency and port density at the edge of the network. As part of an Allied Telesis Management Framework™ (AMF) network, the FS980M switches utilize automated management and zero-touch recovery to lower running costs.

Product Type	Ethernet Switch
Product Series	FS980M
Brand Name	Allied Telesis
Manufacturer	Allied Telesis, Inc
Product Model	AT-FS980M/52
Product Name	CentreCOM AT-FS980M/52 Ethernet Switch
Product Line	CentreCOM
Manufacturer Part Number	AT-FS980M/52-10
Manufacturer Website Address	http://www.alliedtelesis.com
Manageable	Yes
Environmentally Friendly	Yes
Environmental Certification	WEEEREACHRoHST�V
Package Contents	CentreCOM AT-FS980M/52 Ethernet Switch US Power Cord
Ethernet Technology	Gigabit EthernetFast Ethernet
Media Type Supported	Twisted PairOptical Fiber
Network Technology	10/100Base-TX1000Base-X
Number of Total Expansion Slots	4
Number of SFP Slots	4
Shared SFP Slot	No
Expansion Slot Type	SFP
Modular	Yes
Uplink Port	Yes
Stack Port	Yes
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Fast Ethernet Network4 x Gigabit Ethernet Uplink
Redundant Power Supply Supported	No
Power Source	Power Supply
Height	1.7"
Width	17.3"
Depth	10.1"
Form Factor	Wall Mountable
Weight (Approximate)	7.50 lb
Layer Supported	4
