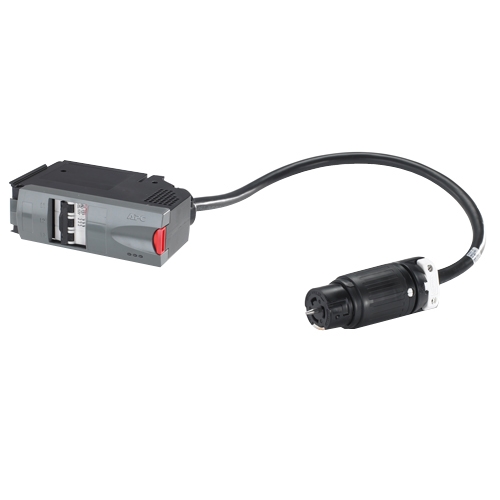

APC APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200CM PDM2330L6-31-1200

The safest method to bring ultra-high efficiency and scalability to power distribution for demanding, business-critical applications APC Power Distribution Modules simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power, connectors with positive locking mechanisms, and isolation of all touch points. Built-in monitoring supplies information about the power consumption of connected devices.

Product Type	Power Module
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200CM
Manufacturer Part Number	PDM2330L6-31-1200
Manufacturer Website Address	http://www.apc.com
Green Compliant	Yes
Green Compliance Certificate/Authority	REACHRoHS
Package Contents	APC IT Power Distribution Module 2 Pole 3 Wire 30A L3-L1 L6-30 1200CM Installation Guide
Height	5"
Width	17.5"
Depth	16"
Weight (Approximate)	9.44 lb
Current	30 A
Frequency	50 Hz
Input Voltage	208 V AC
Output Voltage	208 V AC
Receptacles	1 x NEMA L6-30R
Limited Warranty	1 Year
