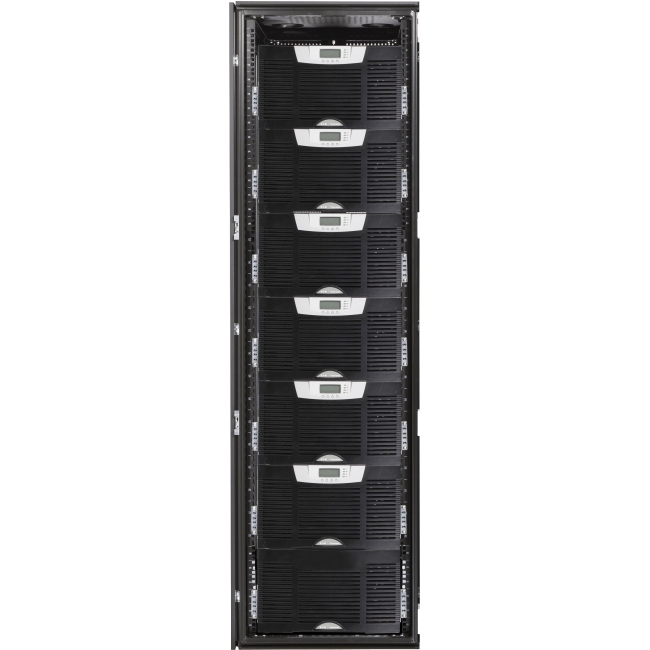

APC by Schneider Electric Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8 GVMSB160KG65S

Galaxy VM Lithium-Ion battery solutions. Galaxy VM is a key component in the comprehensive Schneider Electric energy management solution for data center and industrial applications. Galaxy VM deploys state of the art technology to lower energy cost through very high efficiency ratings and the newly innovative ECOnversion mode. Galaxy VM seamlessly links to your electrical network using state of the art electrical performances like very wide input voltage range, high overload and short circuit capacity, and integrated back feed protection, providing excellent power quality. The highly compact Galaxy VM also links in with your facility monitoring systems and smart grid requirements and offers both traditional and modular energy storage flexibility that allows tailoring of the solution to specific needs. Galaxy VM features top and bottom cable entry without the need for an additional side cabinet, full front service access, back to the wall installation, and included start up service, making it one of the easiest UPSs in its class to deploy, install and maintain.

Product Type	Dual Conversion Online UPS
Brand Name	APC by Schneider Electric
Manufacturer	Schneider Electric SA
Product Name	Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start Up 5x8
Product Line	Galaxy VM
Manufacturer Part Number	GVMSB160KG65S
Manufacturer Website Address	http://www.schneider-electric.com
Energy Star	Yes
Package Contents	Galaxy VM 160 kVA UPS Single 480-480 V, 65kAIC, Start up 5x8 Dust Filter Installation Guide Integrated Network Management Seismic Compliance Start-Up Service Top and Bottom Cable Entry
Height	77.6"
Width	39.5"
Depth	33.6"
Weight (Approximate)	1494.80 lb
Receptacles	1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G)
Load Capacity	160 kVA/144 kW
Input Voltage	480 V AC
Output Voltage	480 V AC
Limited Warranty	1 Year
