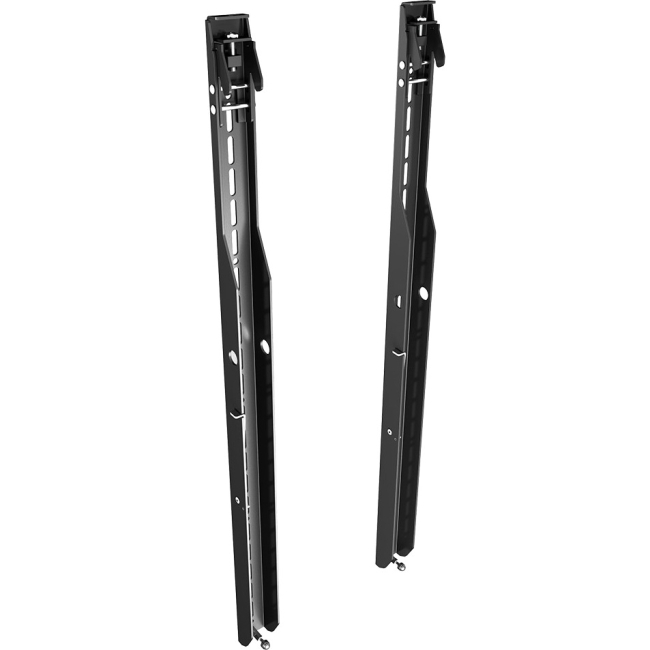

Telehook ProAV Range Vertical Brackets (1Pair) for Video Wall Display System TH-VWVP
Manufacturer: Telehook
Mfg Number: TH-VWVP
SKU:
Condition:
New
UPC: 881493009462
Specifications
| Product Type | Mounting Bracket |
|---|
| Brand Name | Telehook |
|---|
| Manufacturer | Atdec Pty Ltd |
|---|
| Product Name | ProAV Range Vertical Brackets (1Pair) for Video Wall Display System |
|---|
| Product Line | ProAV |
|---|
| Manufacturer Part Number | TH-VWVP |
|---|
| Manufacturer Website Address | http://www.atdec.com |
|---|
| Packaged Quantity | 2 |
|---|
| Compatibility | Telehook Universal Video Wall Mount |
|---|
| Package Contents | - ProAV Range Vertical Brackets (1Pair) for Video Wall Display System
- 4 x M6x16/30/45/60
- 4 x M6 Washer
- 4 x M8x16/30/50/65
- 8 x Spacer
|
|---|
| VESA Mount Standard | 200 x 200800 x 800 |
|---|
| Height | 0.3" |
|---|
| Width | 6" |
|---|
| Color | Black |
|---|
| Weight (Approximate) | 13.86 lb |
|---|
| Maximum Load Capacity | 363 lb |
|---|
| Device Supported | Flat Panel Display |
|---|
| Limited Warranty | 10 Year |
|---|
Description
The Telehook TH-VWVP is a portrait display bracket set (2 brackets per set) for use with the Telehook Universal Video Wall Mount. It is compatible with a universal range of video panels thanks to its unlimited width VESA mounting hole pattern (200mm to 800mm high). A complete solution can be configured via the use of a combination of, 19.6"" (TH-VWP-050), 31.4"" (TH-VWP-080), 39.3"" (TH-VWP-100) or 62.9"" (TH-VWP-160) wall plates and additional bracket sets as required. The Telehook Universal Video Wall Mounting System is an industry leading modular, interchangeable and upgradeable product range that supports a wide variety of video wall configurations; from a modest 2x2 configuration all the way up to 12x12 and beyond. It incorporates a range of high end features that offer high security, time saving and easy installation, and clever adjustment options. Post-installation horizontal adjustment, screen leveling and wall leveling all assist in making the installation process quicker and easier. Modular design gives you the freedom to expand your set up as necessary Clever time saving and easy installation features Simple hook on installation system Post installation adjustment for screen alignment and uneven wall corrections Ultra slim design Security fixing points for each display Material: Steel Warranty: 10 Years
