AXIS Surveillance Camera Pan/Tilt 01226-001 T99A10

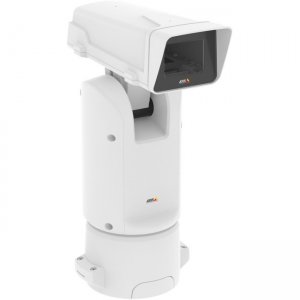

AXIS T99A10 Positioning Unit 24 V AC/DC is a highly responsive and reliable positioning unit, designed for both high-speed and ultra-slow, jerk-free pan and tilt movements - putting operators on the spot in an instant or providing smooth panoramic viewing. Selected Axis fixed box network cameras can be installed in its protective housing. When the positioning unit is column-mounted, it enables a 360° unobstructed field of view for the camera and a ground-to-sky view of 135°. The positioning units are easy to mount in a variety of ways, thanks to optional mounts for wall and pole installations. AXIS T99A10 unit includes both RJ45 and SFP interfaces, enabling a long-distance fiber-optic connection with a failover network link. They operate in extreme temperatures, thanks to the de-icing control that heats up the unit, ensuring a constant operational temperature. The positioning unit is specially designed to be reliable, robust and weatherproof.

Product Type	Surveillance Camera Pan/Tilt
Manufacturer Part Number	01226-001
Manufacturer Website Address	http://www.axis.com
Manufacturer	Axis Communications
Product Model	T99A10
Product Name	T99A10 Surveillance Camera Pan/Tilt
Brand Name	AXIS
Additional Information	Pan/Tilt: Pan: 360° endless, 0.05°/s to 120°/s Tilt: -90° to +45°, 0.05°/s to 60°/s Jerk-free movements at low speed: ±0.01°/s (at 0.05°/s) De-icing control a Dynamic load balancingb Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant powder coated aluminum Color: white NCS S 1002-B Sustainability: PVC free Power: 20-28 V AC/DC Typical: 10 W Max: 169 W TVS 2 kV surge protection I/O connector Output voltage: 12 V DC Max load: 50 mA Connectors: SFP slot (SFP module not included) c RJ45 10BASE-T/100BASE-TX/1000BASE-T network connector c Power connector I/O connector Operating conditions: Normal: -50 °C to 60 °C (-58 °F to 140 °F) Maximum (intermittent): 65 °C (149 °F) With compatible Axis cameras AXIS P1353/P1354/P1355/P1357 and AXIS Q1614: -40
