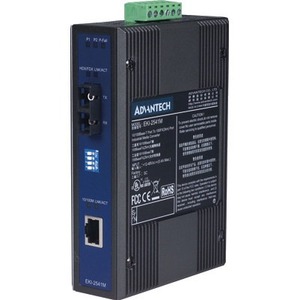

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter EKI-2541M-AE EKI

The EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, the EKI-2541M/2541S is an ideal solution for "fiber to building" applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don't need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 V DC . Besides, it also provides 3,000 V DC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. Link Fault Pass-Through (LFP) The EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile the EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then the EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of SC Ports	1
Total Number of Ports	2
SC Port Type	Duplex
Product Type	Transceiver/Media Converter
Manufacturer Part Number	EKI-2541M-AE
Manufacturer Website Address	http://www.advantech.com
Manufacturer	Advantech Co., Ltd
Product Model	EKI-2541M
Product Name	10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
Brand Name	B+B SmartWorx
Maximum Distance Supported	1.24 Mile
Fiber Optic Cable Standard	50/125 µm 62.5/125 µm
Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Wavelength	1310 nm
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS WEEE
Network Technology	10/100Base-TX 100Base-FX
Ethernet Technology	Fast Ethernet
Form Factor	Rail-mountable Panel-mountable Wall Mountable
Height	5.5"
Width	1.5"
Depth	3.7"
Power Source	DC
Limited Warranty	5 Year
