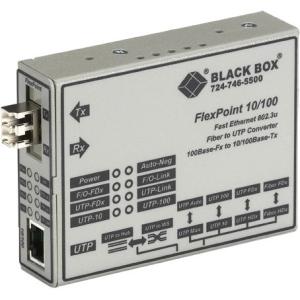

Black Box FlexPoint Transceiver/Media Converter LMC100A-SMLC-R2

Further Details Sends data up to 28 kilometers (17.3 mi.). Complies with 10BASE-T, 100BASE-TX, and 100BASE-FX IEEE 802.3 standards. Both UTP and fiber ports support full- and half-duplex operation. UTP port autosenses 10- or 100-Mbps speeds. Manual override switch for extra control over fiber and UTP ports. Crossover switch provides easy connections to hubs or switches. Hardware available for mounting converter to a wall or a DIN rail. Metal housing has air vents on the sides. Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit. FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.

Product Type	Transceiver/Media Converter
Brand Name	Black Box
Manufacturer	Black Box Corporation
Product Model	LMC100A-SMLC-R2
Product Name	FlexPoint LMC100A-SMLC-R2 Transceiver/Media Converter
Product Line	FlexPoint
Manufacturer Part Number	LMC100A-SMLC-R2
Manufacturer Website Address	http://www.blackbox.com
Green Compliant	Yes
Green Compliance Certificate/Authority	WEEE
Country of Origin	United States
Ethernet Technology	Fast Ethernet
Network Technology	100Base-FX10/100Base-T
USB	No
DVI	No
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Management Port	No
Number of LC Ports	1
Total Number of Ports	2
LC Port Type	Duplex
Media Type Supported	Optical FiberTwisted Pair
Fiber Mode Supported	Single-mode
Maximum Distance Supported	17.40 Mile
Height	1"
Width	3"
Depth	4"
Form Factor	Wall MountableRail-mountableRack-mountable
Weight (Approximate)	6.40 oz
Power Source	Power Supply
Limited Warranty	2 Year
