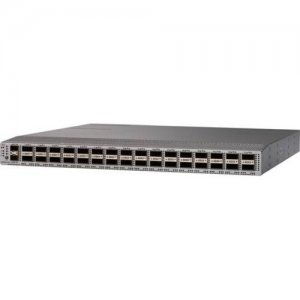

Cisco Nexus Switch with 32 QSFP28 Spare N3K-C3132C-Z= 3132C-Z

The Cisco Nexus 3132C-Z is the 32-port 100-Gbps programmable architecture switch, enabled with major data center features designed for software-defined data centers. This 1-Rack-Unit (1RU) model offers wire-rate Layer 2 and 3 switching. The Cisco Nexus 3132C-Z is a Quad Small Form-Factor Pluggable (QSFP) switch with 32 QSFP28 ports. Each QSFP28 port can operate at 10, 25, 40, 50, and 100 Gbps, up to a maximum of 128 x 25-Gbps ports. It is a member of the Cisco Nexus 3100 platform and runs the industry-leading Cisco®NX-OS Software operating system, providing customers with comprehensive features and functions that are widely deployed. The Cisco Nexus 3132C-Z supports both forward and reverse (port-side exhaust and port-side intake) airflow schemes with AC and DC power inputs. The Cisco Nexus 3132C-Z has the following hardware configuration: 32 fixed 100-Gigabit Ethernet QSFP28 ports Beacon LED Environment LED Status LED Four lane-selected LEDs Dual redundant power supplies Redundant (3+1) fans Two 10-Gbps SFP ports One RJ45 console port One RJ45 and SFP management port One USB port

Modular	Yes
Port/Expansion Slot Details	32 x 100 Gigabit Ethernet Expansion Slot 2 x 10 Gigabit Ethernet Expansion Slot
Product Type	Layer 3 Switch
Manufacturer Part Number	N3K-C3132C-Z=
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	3132C-Z
Product Name	Nexus 3132C-Z Switch with 32 QSFP28 Spare
Product Line	Nexus
Product Series	3000
Brand Name	Cisco
Expansion Slot Type	QSFP28
Number of Total Expansion Slots	34
Network Technology	10GBase-X 100GBase-X
Ethernet Technology	10 Gigabit Ethernet 100 Gigabit Ethernet
Media Type Supported	Optical Fiber
Country of Origin	China
Environmentally Friendly	Yes
Environmental Certification	RoHS-5
Layer Supported	3
Weight (Approximate)	13.80 lb
Height	17.3"
Width	1.7"
Depth	18.5"
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Manageable	Yes
Limited Warranty	1 Year
