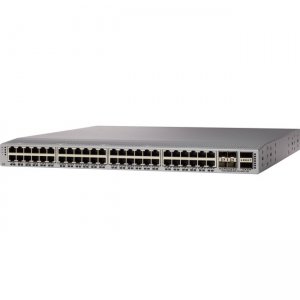

Cisco Nexus Ethernet Switch N9K-C9348-FX-B14Q 9348GC-FXP

The Cisco Nexus 9348GC-FXP Switch is a 1RU switch that supports 696 Gbps of bandwidth and over 250 mpps. The 48 1GBASE-T downlink ports on the 9348GC-FXP can be configured to work as 100-Mbps, 1-Gbps ports. The 4 ports of SFP28 can be configured as 10/25-Gbps and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports. The Cisco Nexus 9348GC-FXP is ideal for big data customers that require a Gigabit Ethernet ToR switch with local switching.

Modular	Yes
Uplink Port	No
Stack Port	No
Total Number of Network Ports	48
Port/Expansion Slot Details	48 x Gigabit Ethernet Network 4 x 25 Gigabit Ethernet Expansion Slot 2 x 100 Gigabit Ethernet Expansion Slot
Product Type	Ethernet Switch
Manufacturer Part Number	N9K-C9348-FX-B14Q
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	9348GC-FXP
Product Name	Nexus 9348GC-FXP Ethernet Switch
Product Line	Nexus
Product Series	9300
Brand Name	Cisco
Expansion Slot Type	QSFP28 SFP28
Number of Total Expansion Slots	6
Shared SFP Slot	No
Network Technology	10/100/1000Base-T 25GBase-T 100GBase-X
Ethernet Technology	Gigabit Ethernet 25 Gigabit Ethernet 100 Gigabit Ethernet
Media Type Supported	Optical Fiber Twisted Pair
Layer Supported	3
Weight (Approximate)	14.20 lb
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	19.7"
Compatible Rack Unit	1U
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Manageable	Yes
