CyberPower Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P PDU20SWHVT10ATNET

CyberPower Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P PDU20SWHVT10ATNET
Price $679.97
Manufacturer: CyberPower
Mfg Number: PDU20SWHVT10ATNET
SKU:
Condition: New
UPC: 649532610822
Accessories
Description

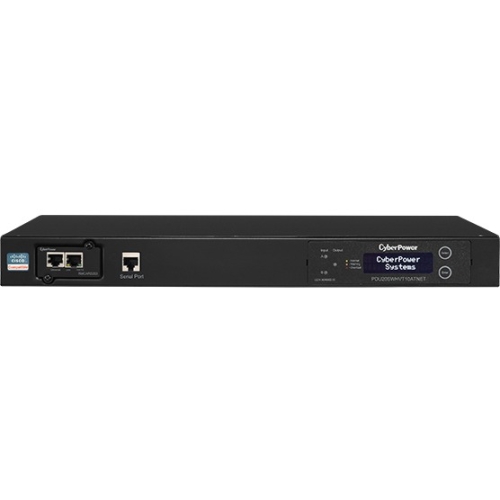

The CyberPower PDU20SWHVT10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V / 20A output. The PDU distributes power to 10 IEC-320 8-C13 / 2-C14 receptacles from redundant L5-20P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation. The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications. The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets. The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
Specifications
Product TypePDU
Brand NameCyberPower
ManufacturerCyberPower Systems, Inc
Product ModelPDU20SWHVT10ATNET
Product NamePDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
Manufacturer Part NumberPDU20SWHVT10ATNET
Manufacturer Website Addresshttp://www.cyberpowersystems.com
Green CompliantYes
Green Compliance Certificate/AuthorityRoHS
Package Contents
  • PDU20SWHVT10ATNET Switched ATS PDU 200-240V 20A 1U 10-Outlets (2) L6-20P
  • RMCARD203 SNMP Card
  • 1 x Mounting Brackets Set
  • Cord Retention Tray
  • Cord Organizers
  • User Manual
Height1.8"
Width17.1"
Depth9.3"
Rack Height1U
Form FactorRack-mountable
Weight (Approximate)12.35 lb
Input Receptacles2 x NEMA L6-20P
Output Receptacles8 x IEC 60320 C132 x IEC 60320 C19
Input Current20 A
Input Voltage230 V AC
Output Voltage230 V AC
Management
  • Automatic Transfer Switch (ATS)
  • SNMP/HTTP
Limited Warranty3 Year
