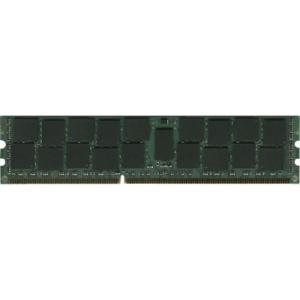

Dataram 16GB DDR3 SDRAM Memory Module DRHZ828/16GB

Each DRHZ828 upgrade consists of a single DDR3-1866 Registered ECC DIMM that conforms to JEDEC??s DDR3, PC3-14900 standard. The DRHZ828/32GB is a loadreduced memory module (LRDIMM). One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Brand Name	Dataram
Manufacturer	Dataram Corporation
Product Name	16GB DDR3 SDRAM Memory Module
Manufacturer Part Number	DRHZ828/16GB
Manufacturer Website Address	http://www.dataram.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Compatibility	HP Z820 Workstation
Width	5.3"
Form Factor	DIMM
Length	1.2"
Number of Pins	240-pin
Memory Voltage	1.50 V
Memory Standard	DDR3-1866/PC3-14900
Memory Technology	DDR3 SDRAM
CAS Latency	CL13
Memory Size	16 GB
Error Checking	ECC
Number of Modules	1 x 16 GB
Signal Processing	Registered
