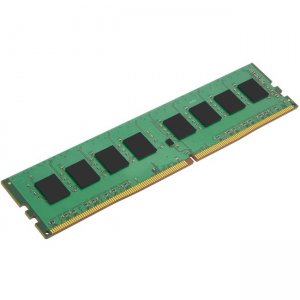

Dataram 16GB DDR3 SDRAM Memory Module DRL1066RQL/16GB

Each DRL1066RL upgrade consists of a single DDR3- 1066 Registered DIMM that conforms to JEDEC's DDR3, PC3L-8500 standard. One 2K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL with Address and Command Parity is also used. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Brand Name	Dataram
Manufacturer	Dataram Corporation
Product Model	DRL1066RQL/16GB
Product Name	16GB DDR3 SDRAM Memory Module
Manufacturer Part Number	DRL1066RQL/16GB
Manufacturer Website Address	http://www.dataram.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Compatibility	Dell PowerEdge Servers: C6100 M610 M610X M710 M710HD M915 R410 R510 R715 R810 T410
Width	1.2"
Form Factor	DIMM
Length	5.3"
Number of Pins	240-pin
Memory Standard	DDR3-1066/PC3-8500
Memory Technology	DDR3 SDRAM
Memory Size	16 GB
Memory Speed	1066 MHz
Error Checking	ECC
Number of Modules	1 x 16 GB
Signal Processing	Registered
Limited Warranty	Lifetime
