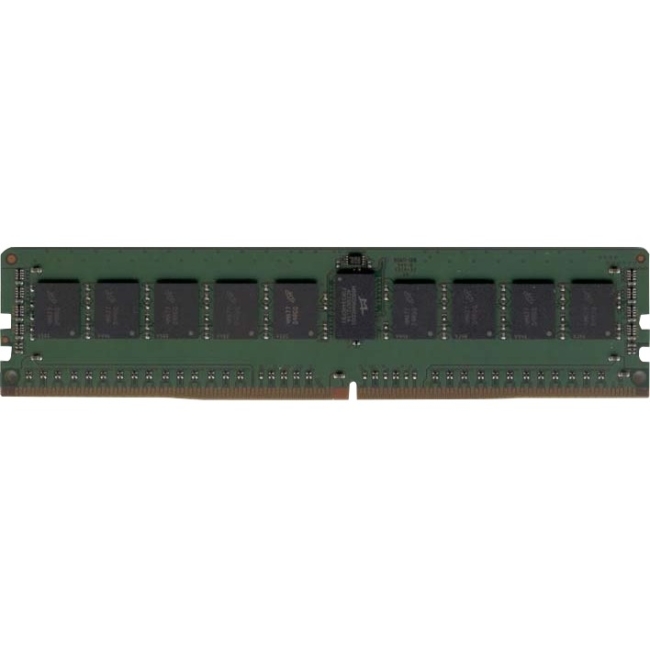

Dataram 8GB DDR4 SDRAM Memory Module DTM68105A

DTM68105A is a registered 1Gx72 memory module, which conforms to JEDEC's DDR4-2133, PC4-2133 standard. The assembly is Dual-Rank. Each rank is comprised of nine Micron 512Mx8 DDR4- 2133 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Brand Name	Dataram
Manufacturer	Dataram Corporation
Product Name	8GB DDR4 SDRAM Memory Module
Manufacturer Part Number	DTM68105A
Manufacturer Website Address	http://www.dataram.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Compatibility	Intel S2600CW (Cottonwood Pass) Motherboard
Width	5.3"
Form Factor	DIMM
Length	1.2"
Number of Pins	288-pin
Memory Voltage	1.20 V
Memory Standard	DDR4-2133/PC4-2133
Memory Technology	DDR4 SDRAM
Memory Size	8 GB
Error Checking	ECC
Number of Modules	1 x 8 GB
Signal Processing	Registered
