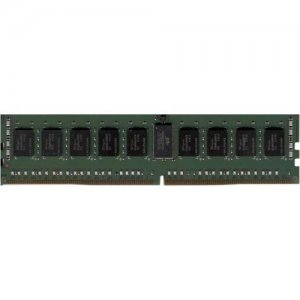

Dataram 16GB DDR4 SDRAM Memory Module DTM68131-H

Dataram 16GB DDR4 SDRAM Memory Module DTM68131-H
Price $76.61
Manufacturer: Dataram
Mfg Number: DTM68131-H
Condition: New
DTM68131-H is a registered 2Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Dual-Rank with each rank containing: nine SKHynix 1Gbx8 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Product Type RAM Module
Manufacturer Part Number DTM68131-H
Manufacturer Website Address http://www.dataram.com
Manufacturer Dataram Corporation
Product Name 16GB DDR4 SDRAM Memory Module
Brand Name Dataram
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
Number of Pins 288-pin
Thickness 156.7 mil
Form Factor DIMM
Length 1.3"
Width 1.2"
CAS Latency CL19
Device Supported Server
Error Checking ECC
Number of Modules 1 x 16GB
Signal Processing Registered
Memory Speed 2666 MHz
Memory Size 16 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21333
Memory Voltage 1.20 V
Limited Warranty Lifetime
