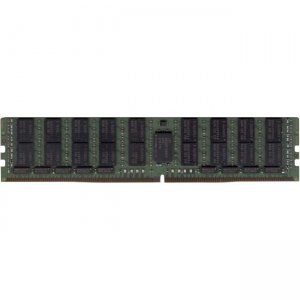

Dataram 64GB DDR4 SDRAM Memory Module DTM68306-H

Dataram 64GB DDR4 SDRAM Memory Module DTM68306-H
Price $190.44
Manufacturer: Dataram
Mfg Number: DTM68306-H
SKU:
Condition: New
Accessories
Description
DTM68306-H is a load reduced 8Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Quad-Rank containing - thirty-six SKHynix 4Gbx4 DDR4-2666 DDP SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a Registering Clock Driver, with Address and Command Parity, is also used as well as data buffers to reduce the overall loading on the data bus.Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
Specifications
Product Type RAM Module
Manufacturer Part Number DTM68306-H
Manufacturer Website Address http://www.dataram.com
Manufacturer Dataram Corporation
Product Name 64GB DDR4 SDRAM Memory Module
Brand Name Dataram
Country of Origin United States
Environmentally Friendly Yes
Environmental Certification RoHS
Number of Pins 288-pin
Thickness 156.7 mil
Form Factor LRDIMM
Length 5.3"
Width 1.2"
CAS Latency CL19
Device Supported Server
Error Checking ECC
Number of Modules 1 x 64GB
Signal Processing Registered
Memory Speed 2666 MHz
Memory Size 64 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Memory Voltage 1.20 V
Limited Warranty Lifetime
