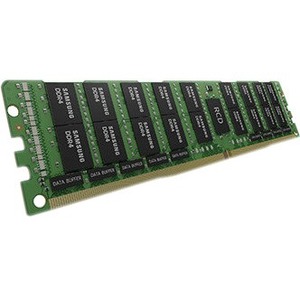

Dataram Value Memory 16GB DDR4 SDRAM Memory Module DVM26R1T4/16G

DVM26R1T4/16G is a registered 2Gx72 memory module, which conforms to JEDEC's DDR4-2666, PC4-2666 standard. The assembly is Single-Rank, comprised of nine 2Gbx4 DDR4-2666 SDRAMs. One EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used. Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.

Product Type	RAM Module
Manufacturer Part Number	DVM26R1T4/16G
Manufacturer Website Address	http://www.dataram.com
Manufacturer	Dataram Corporation
Product Name	Value Memory 16GB DDR4 SDRAM Memory Module
Product Line	Value Memory
Brand Name	Dataram
Country of Origin	United States
Number of Pins	288-pin
Form Factor	DIMM
Length	5.3"
Width	1.2"
CAS Latency	CL19
Device Supported	Desktop PC Server
Error Checking	ECC
Number of Modules	1 x 16GB
Signal Processing	Registered
Memory Speed	2666 MHz
Memory Size	16 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2666/PC4-21333
Memory Voltage	1.20 V
