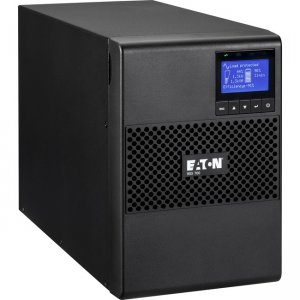

Eaton 9SX 700VA Tower UPS 9SX700

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This 9SX on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Featuring surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the 9SX700 provides the highest level of AC power protection and battery backup for medical, light industrial, automation and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA 5-15R Outlets Protect Your Connected Components Six NEMA 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.

Backup/Run Time (Full Load)	5.80 Minute
Product Type	Double Conversion Online UPS
Manufacturer Part Number	9SX700
Manufacturer Website Address	http://www.eaton.com
Manufacturer	Eaton Corporation
Product Name	9SX 700VA Tower UPS
Product Series	9SX
Brand Name	Eaton
Package Contents	700VA Tower UPS Quick Start Guide Safety Guide Serial And USB Cables
Country of Origin	Philippines
Weight (Approximate)	26.50 lb
Form Factor	Tower
Input Voltage	120 V AC
Output Voltage	100 V AC 110 V AC 120 V AC 125 V AC
Load Capacity	700 VA/630 W
Waveform Type	Sine Wave
Input Voltage Range	100 V AC - 138 V AC
Application/Usage	Industrial Equipment Industrial Automation System IT System
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Limited Warranty	2 Year
