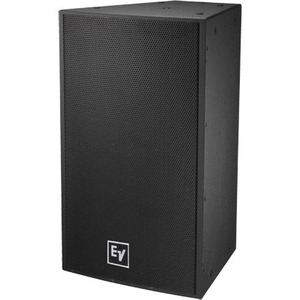

Electro-Voice EVF-1152D/64 Single 15" Two-Way 60 x 40 Full-Range Loudspeaker System EVF-1152D/64-BLK

Key Features: DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit pure titanium compression driver DVX3151A 15" (381 mm) LF transducer with fully symmetric drive Advanced fourth-order crossover network with HF protection Coverage pattern: 60° x 40° Constant Directivity™ 12" rotatable waveguide 100 dB sensitivity, 134 dB maximum SPL System rating: 600 W continuous, 2400 W peak Active rating: LF 500 W/HF 75 W continuous (2000 W/300 W peak) (22) M10 threaded suspension points PI version available with gland nut and stainless-steel grille General Description:The Electro-Voice EVF-1152D/64 is a high-power, two-way loudspeaker system that can be used in a variety of applications where high-quality sound reinforcement is required in a compact, lightweight package.The EVF-1152D/64 utilizes the DH7N, a high-output 3" titanium compression driver, coupled to a Constant Directivity™ 60° x 40° waveguide. The DVX3151A 15" woofer was developed using FEA optimization for motor, suspension, and electrical design to ensure very low distortion, high efficiency, and maximum intelligibility at high SPL. The crossover uses steep, 24-dB-per-octave slopes with equalization for very smooth response in the vocal range, linear off-axis response, and a protection circuit for long-term reliability.The EVF-1152D/64's features make it ideal for many fixed-install applications. The trapezoidal enclosure is constructed of weather-resistant birch, and coated with EVCoat™ for maximum protection from the elements. The unique acoustic and rigging design allows for vertical and horizontal clusters to be built using any combination of loudspeakers from the entire EVF and EVH series. With seven horn patterns to choose from, along with an assortment of low-frequency and subwoofer loudspeakers, you have the tools to maximize flexibility of system design, no matter what the application and budget. The innovative input panel provides a choice of Phoenix-style connector (included in all standard models) or the ability to add a dual NL4-type connector cover plate or gland-nut cover plate (for weatherizing applications). An externally accessible jumper selects passive or active operation. An available 70.7/100-V transformer kit may be easily mounted to the input panel for use in distributed systems. All these features give you the flexibility to address a large range of venues, quickly and precisely supporting customer requirements with fewer items in inventory.

Product Type	Speaker
Manufacturer Part Number	EVF-1152D/64-BLK
Manufacturer Website Address	http://www.bosch.com
Manufacturer	The Bosch Group
Product Name	EVF-1152D/64 Single 15" Two-Way 60° x 40° Full-Range Loudspeaker System
Product Line	Premium
Product Series	EVF
Brand Name	Electro-Voice
Weight (Approximate)	75.84 lb
Height	30.3"
Width	18.5"
Depth	18.37"
Woofer Diameter	15"
Product Color	Black Finish
Impedance	8 Ohm
Sensitivity	134 dB
Crossover Type	2-way
Minimum Frequency Response	40 Hz
Maximum Frequency Response	21 kHz
RMS Output Power	600 W
PMPO Output Power	2400 W
Tweeter Driver Size	3"
Woofer Driver Size	15"
Tweeter Driver Material	Titanium
