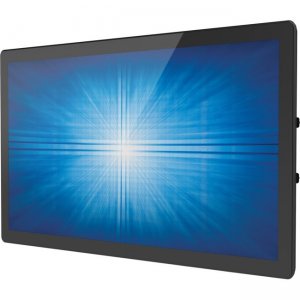

Elo 27" Open Frame Touchscreen (Rev B) E329077 2794L

The Elo 2794L 27-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2794L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.Touch ready.Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® Plus dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.Other features. Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing Display Port and VGA video interfaces High definition LCD display offers ultimate HD interactivity, clarity and resolution 10-touch TouchPro™ projected capacitive (PCAP) with two-touch Thru-glass capabilities

Product Type	Open-frame LCD Touchscreen Monitor
Brand Name	Elo
Manufacturer	Elo Touch Solutions, Inc
Product Model	2794L
Product Name	2794L 27" Open Frame Touchscreen (Rev B)
Manufacturer Part Number	E329077
Manufacturer Website Address	http://www.elotouch.com
Environmentally Friendly	Yes
Environmental Certification	T�VRoHSChina RoHSWEEE
Package Contents	2794L 27" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws EEI Label Japan Class-B TM info sheet
USB	Yes
HDMI	Yes
VGA	Yes
DisplayPort	Yes
Backlight Technology	LED
Screen Mode	Full HD
Mount Type	Front Mount
Screen Size	27"
Aspect Ratio	16:9
Response Time	12 ms
VESA Mount Compatible	Yes
Height	14.7"
Width	24.9"
Depth	1.7"
Color	Black
Weight (Approximate)	16.10 lb
Operating Power Consumption	27 W
Multi-touch Screen	Yes
Touchscreen Type	IntelliTouch Surface Wave
Brightness	300 Nit
Color Supported	16.7 Million Colors
Maximum Resolution	1920 x 1080
Contrast Ratio	3,000:1
Limited Warranty	3 Year
