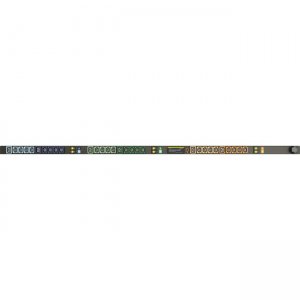

Geist 30-Outlets PDU I10012L MN01X4W1-30PN63-3TL56A0A10-S

I10012L provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.

Product Type	PDU
Manufacturer Part Number	I10012L
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Model	MN01X4W1-30PN63-3TL56A0A10-S
Product Name	MN01X4W1-30PN63-3TL56A0A10-S 30-Outlets PDU
Brand Name	Geist
Package Contents	MN01X4W1-30PN63-3TL56A0A10-S 30-Outlets PDU Vertical Mounting Bracket Kit
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	RoHS
Length	72"
Mount Type	Rack-mountable
Rack Height	0U
Width	2"
Depth	2.3"
Mounting Orientation	Vertical
Input Voltage	230 V AC 415 V AC
Output Voltage	230 V AC
Input Current	30 A
Input Voltage Range	230 V AC - 400 V AC
Power Rating (Watt)	16.60 kW
Protection Type	Overcurrent Protection
Plug/Connector Type	NEMA L22-30P
Phase	Three Phase
Receptacle Type	U-Lock IEC 60320 C13 U-Lock IEC 60320 C19
PDU Type	Basic
Receptacle Detail	24 x U-Lock IEC 60320 C13 6 x U-Lock IEC 60320 C19
Plug/Connector Detail	1 x NEMA L22-30P
Limited Warranty	5 Year
