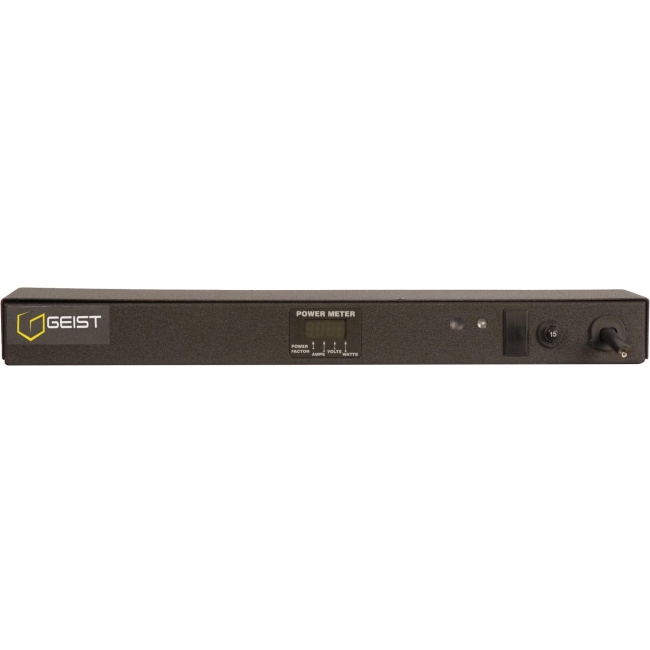

Geist 36-Outlets PDU NU30020L MNU3EGW1-36MT79-3TL21A0A10-S-A

The NU30020L provides IP-based monitoring and outlet control with quick access to real-time outlet-level power metrics and environmental sensor data. Using Visible Light Communication (VLC) technology, NU30020L optically transmits power usage data from its LED display to a handheld device using the Geist Mobile App, presenting comprehensive power usage data down to the phase and circuit levels. With the Geist Upgradeable hot-swap technology, users may easily upgrade PDUs to the latest available technology by replacing the Interchangeable Monitoring Device (IMD) module.

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	NU30020L
Manufacturer Website Address	http://www.vertiv.com/
Manufacturer	Vertiv
Product Model	MNU3EGW1-36MT79-3TL21A0A10-S-A
Product Name	MNU3EGW1-36MT79-3TL21A0A10-S-A 36-Outlets PDU
Brand Name	Geist
Management	DHCP HTTP HTTPS IPv4 IPv6 LDAP NTP RSTP SSH SMTP SNMP (v1/v2c/v3) Syslog
Package Contents	MNU3EGW1-36MT79-3TL21A0A10-S-A 36-Outlets PDU Vertical Mounting Bracket Kit
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Certification	RoHS
Length	72"
Mount Type	Rack-mountable
Rack Height	0U
Width	2"
Depth	2.6"
Mounting Orientation	Vertical
Input Voltage	120 V AC 230 V AC
Output Voltage	208 V AC
Input Current	30 A
Input Voltage Range	120 V AC - 208 V AC
Power Rating (Watt)	8600 W
Protection Type	Overcurrent Protection
Plug/Connector Type	NEMA L21-30P
Phase	Three Phase
Receptacle Type	U-Lock IEC 60320 C13 U-Lock IEC 60320 C19 NEMA 5-20R
PDU Type	Switched
Receptacle Detail	24 x U-Lock IEC 60320 C13 6 x U-Lock IEC 60320 C19 6 x NEMA 5-20R
Plug/Connector Detail	1 x NEMA L21-30P
Limited Warranty	3 Year
