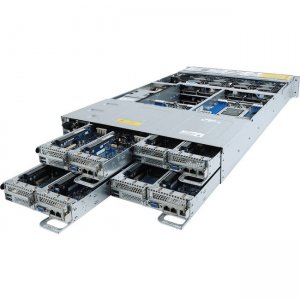

Gigabyte (rev. 100) Barebone System H262-Z63

Gigabyte (rev. 100) Barebone System H262-Z63
Price $5,919.78
Manufacturer: Gigabyte
Mfg Number: H262-Z63
Condition: New
UPC: 889523019276
2U - 4 nodes rear access server system Dual AMD EPYC™ 7002 series processor family 8 x LGA 4094 sockets 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs 8 x 1Gb/s LAN ports (Intel® I350-AM2) 4 x Dedicated management ports 1 x CMC global management port 8 x 2.5" NVMe hot-swappable SSD bays 8 x M.2 with PCIe Gen3 x4 interface 8 x Low profile PCIe Gen4 x16 expansion slots 4 x OCP 2.0 Gen3 x16 mezzanine slots Aspeed® AST2500 remote management controller 2200W 80 PLUS Platinum redundant PSU AMD EPYC™ 7002 Series Processor (Rome) The next generation of AMD EPYC has arrived, providing incredible compute, IO and bandwidth capability - designed to meet the huge demand for more compute in big data analytics, HPC and cloud computing. Built on 7nm advanced process technology - the best the industry has to offer, allowing for denser compute capabilities with lower power consumption The world's first 64 core data center CPU, built using Zen 2 high performance cores and AMD's innovative chiplet architecture The world's first mainstream PCIe Gen 4.0 data center CPU with a bandwidth of up to 64GB/s, twice of PCIe Gen 3.0 Embedded security protection to help defend your CPU, applications, and data PCIe Gen 4.0 Ready AMD EPYC Rome is the world's first mainstream data center CPU to support PCIe Gen 4.0, with a bandwidth of 64GB/s, twice that of PCIe Gen 3.0. This doubles the bandwidth available from the CPU to peripheral devices such as graphics cards, storage devices and high speed network cards. GIGABYTE's AMD EPYC 7002 Series server platforms are ready to be used with a new generation of PCIe Gen 4.0 devices such as AMD's Radeon MI50 GPGPU. Higher Memory Speed AMD EPYC's Rome 7002 Series processors feature faster 8 channel DDR4 memory lanes, supporting RDIMM or LRDIMM memory modules with a speed of up to 3200MHz (1 DIMM per channel) More M.2 Storage GIGABYTE's AMD EPYC 7002 Series server platforms feature more M.2 drive capacity for ultra-fast NVMe storage - both onboard M.2 slots and extra capacity via optional riser cards. Max TDP Support GIGABYTE's AMD EPYC server platforms come ready to support the full list of AMD EPYC Rome 7002 Series processors: up to 225W (standard TDP) / 240W (cTDP) Data Security TPM 2.0 Module GIGABYTE's AMD EPYC Server is designed to support Trusted Platform Modules (TPM - discrete cryptographic on-board processors). CMC for Chassis Management & Multi-Node Monitoring GIGABYTE's H-Series Servers feature an Aspeed CMC (Central Management Controller) for chassis-level management and node-level monitoring (by connecting internally to Aspeed BMCs integrated on each node). This results only in one MLAN connection required to perform monitoring of all four nodes, resulting in less ToR (Top of Rack) cabling and switch connections. Multi-Server Management GIGABYTE's H-Series Servers also feature the ability to create a "ring" connection for monitoring & management of all servers (incl. chassis-level & node-level) in a rack (including iKVM support) with an onboard LAN hub and dual MLAN ports. Only two ToR (Top of Rack) switch connections are needed to create the ring system, and the ring will not be broken even if one server in the chain is shut down, reducing cabling and switch port usage for greater cost savings and management efficiency.
Total Number of USB Ports 2
Number of USB 3.0 Ports 2
Graphics Controller Manufacturer ASPEED
Graphics Controller Model AST2500
Product Type Barebone System
Manufacturer Part Number H262-Z63
Manufacturer Website Address http://www.gigabyte.us
Packaged Quantity 1
Manufacturer GIGABYTE Technology, Inc
Product Model H262-Z63
Product Name H262-Z63 (rev. 100) Barebone System
Brand Name Gigabyte
Number of Internal 2.5" Bays 2
Number of Total Expansion Bays 2
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 3
Maximum Memory Supported 128 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Number of Total Memory Slots 16
Package Contents
  • H262-Z63 (rev. 100) Barebone System
  • 8 x CPU Heatsinks
  • 1 x Rail Kit
Country of Origin China
Environmentally Friendly Yes
Environmental Certification RoHS
Ethernet Technology Gigabit Ethernet
Form Factor Rack-mountable
Rack Height 2U
Height 3.4"
Width 17.3"
Depth 33.1"
Input Voltage 120 V AC 230 V AC
Number of Power Supplies Installed 2
Maximum Power Supply Wattage 2200 W
Limited Warranty 1 Year
Processor Supported EPYC
Processor Socket Socket SP3
64-bit Processing Yes
Number of Nodes 4
Number of Processors Supported 2
Chipset Manufacturer AMD
Operating System Supported Windows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 7.6 x64 Red Hat Enterprise Linux 8.0 x64 SuSE Linux Enterprise Server 12 x64 SuSE Linux Enterprise Server 15 x64 Ubuntu 18.04.2 LTS x64 Ubuntu 16.04.6 LTS x64
