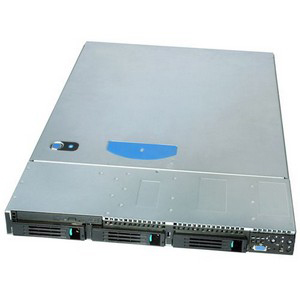

Intel Server System Barebone System SR1600URHSR

The Intel Server System SR1600URHSR Barebone System is designed for high-density compute power in a 1U rack chassis. This Server System features includes 12 DIMMs DDR3 memory, high speed PCI Express 2.0 I/O slots, and integrated RAID, for high performance computing (HPC).

Product Type	Barebone System
Brand Name	Intel
Manufacturer	Intel Corporation
Product Model	SR1600URHSR
Product Name	Server System SR1600URHSR Barebone System
Manufacturer Part Number	SR1600URHSR
Manufacturer Website Address	http://www.intel.com
Number of External 5.25" Bays	1
Number of Total Expansion Bays	4
Number of 3.5" Bays	3
Number of Total Expansion Slots	1
Number of PCI Express x16 Slots	1
Chipset Manufacturer	Intel
Chipset Model	5520
Number of Processors Supported	2
Processor Socket	Socket B LGA-1366
Processor Supported	Xeon
Graphics Controller Model	Server Engine
Graphics Memory Capacity	64 MB
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	600 W
Number of Total Memory Slots	12
Memory Standard	DDR3-1333/PC3-10600
Memory Technology	DDR3 SDRAM
RAID Supported	Yes
Controller Type	Serial ATA/300
Ethernet Technology	Gigabit Ethernet
Height	1.7"
Width	16.9"
Depth	27.2"
Rack Height	1U
Form Factor	Rack-mountable
