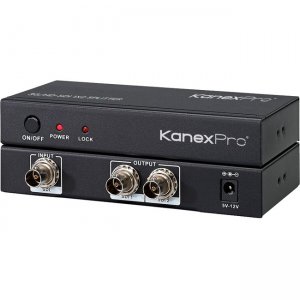

KanexPro 3G /HD-SDI 1x2 Distribution Amplifier SP-SDIX2

The KanexPro 1x2 SDI unit can split, re-clock, and amplify SDI source video to 2 SDI outputs providing full HD 1080p resolution to up to 2 displays simultaneously for faster broadcasting and production. The splitter accepts one SDI input from the SD-SDI, HD-SDI, or 3G-SDI video source such as VTR, SDI recorders and other sources. After replicating the signal perfectly, it automatically deploys cable equalization to simultaneously transmit SDI signals as far as 1000 feet (300 m) over 8 x BNC coax runs to 2 monitors. For HD-SDI video, the splitter goes up to 500 feet (150 m) and for 3G-SDI video, up to 328 feet (100 m). Applications: Ideally used with SDI based surveillance systems, rental & staging facilities, post-production, TV studio, digital cinema, or other A/V applications where you need to split and extend from a camera or other device equipped with 3G/HD/SD-SDI outputs to dual SDI-compliant displays or video processors.

BNC In	Yes
BNC Out	Yes
Number of BNC Inputs	1
Number of BNC Outputs	2
Product Type	Audio/Video Distribution Amplifier
Manufacturer Part Number	SP-SDIX2
Manufacturer Website Address	http://www.kanexpro.com
Manufacturer	KanexPro
Product Model	SP-SDIX2
Product Name	3G /HD-SDI 1x2 Distribution Amplifier
Brand Name	KanexPro
Maximum Operating Distance	984.25 ft
Weight (Approximate)	11.29 oz
Height	1"
Width	2.8"
Depth	5.7"
Input Voltage	12 V DC
Maximum Video Resolution	1920 x 1080
Limited Warranty	3 Year
