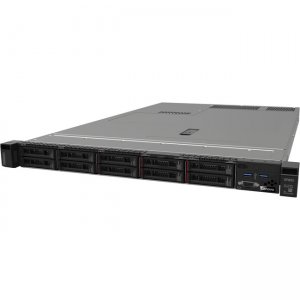

Lenovo ThinkSystem SR630 Server 7X02A0FANA

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

RAID Levels	0, 1, 5, 10, 50, JBOD
Controller Type	Serial ATA/600 12Gb/s SAS
RAID Supported	Yes
Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200e
Graphics Memory Capacity	16 MB
Product Type	Server
Manufacturer Part Number	7X02A0FANA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Manufacturer	Lenovo Group Limited
Product Model	7X02A0FANA
Product Name	ThinkSystem SR630 7X02A0FANA Server
Product Line	ThinkSystem
Product Series	SR630
Brand Name	Lenovo
Number of Total Expansion Bays	4
Number of 3.5" Bays	4
Hot Swappable Bays	Yes
Standard Memory	16 GB
Memory Technology	TruDDR4
Number of Total Memory Slots	24
Number of Occupied Memory Slots	1
Intel Optane Memory Ready	Yes
Package Contents	ThinkSystem SR630 7X02A0FANA Server Rack Installation Guide Electronic Publications Flyer Tool-less Rail Kit 2.8 m C13-C14 Rack Power Cable
Environmentally Friendly	Yes
Environmental Certification	ENERGY STAR 3.0 RoHS
Energy Star	Yes
Ethernet Technology	Gigabit Ethernet
Weight (Approximate)	41.45 lb
Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	28.1"
Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	750 W
Optical Drive Type	No
Total Hard Drive Capacity	No
Limited Warranty	3 Year
Processor Speed	2.10 GHz
Processor Type	Xeon Silver
Processor Model	4208
Processor Core	Octa-core (8 Core)
Processor Manufacturer	Intel
Number of Processors Supported	2
Number of Processors Installed	1
Processor Generation	2nd Gen
Operating System	No
