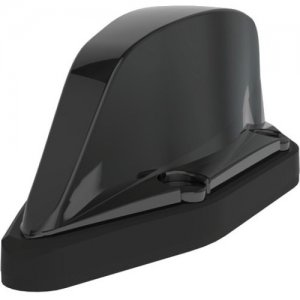

Panorama Antennas MiMo 2G/3G/4G Rail Antenna With Optional GNSS TRNM-7-60-NJ

The TRNM(G) MiMo antenna series is designed specifically for use on trains, trams and busses underground and overground. 2x2 MiMo Cell LTE Standard 4 hole fixing Approved to rail industry standards Incorporating two elements operating wideband across all frequencies from 698MHz to 6000MHz, the TRNM(G) range is versatile and future proof. The TRNM(G) series covers GSMR, 700MHz LTE, 800MHz TETRA and trunking bands along with all cellular and GSM frequencies, 2.4 & 5.8GHz WLAN, 2.6 GHz LTE and WiMAX all in one housing. The TRNM(G) has two DC grounded radiating elements, in versions with a GPS module it is protected by a gas discharge surge arrestor. Housed in a high impact, flame retardant Ultem housing, the TRNM(G) series is weatherproof ensuring that the antenna's performance is never compromised. The antenna is certified to EN45545 and EN50155.

Connector Type	N-connector
Product Type	Antenna
Manufacturer Part Number	TRNM-7-60-NJ
Manufacturer Website Address	http://www.panorama-antennas.com
Manufacturer	Panorama Antennas Ltd
Product Name	MiMo 2G/3G/4G Rail Antenna With Optional GNSS
Product Series	TRNM(G)
Brand Name	Panorama Antennas
Application/Usage	Cellular Network Wireless Data Network Indoor Outdoor
Form Factor	Panel
Height	3.86"
Width	3.43"
Product Color	Black
Directivity	Omni-directional
Operating Frequency Range	698 MHz to 960 MHz 1710 MHz to 6000 MHz 2.4 GHz 4.9 GHz to 6 GHz
Antenna Gain (Isotropic)	10 dBi
