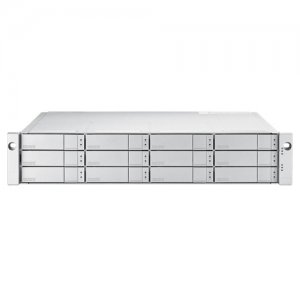

Promise VTrak SAN Storage System E5300FDQS10 E5300FD

High Performance, High Availability The VTrak E5000 Series delivers an affordable high-performance Fibre Channel to SAS storage solution with advanced enterprise level reliability and functionality. With four 16Gb Fibre Channel ports and two 12Gb SAS ports per controller connecting host and storage expansion, the E5000 is perfect for applications requiring huge bandwidth. The E5000 can output 542,100 read IOPs and up to 111,686 write IOPs. It can deliver 12 Gigabyte read and 5.3 Gigabyte write sequential throughput. Fully redundant components such as Active-Active controllers, power supplies, and cooling units provide optimal data availability even during unforeseen circumstances. The VTrak E5000 is truly a full featured enterprise level storage system that can accommodate any size of business environment. IT/Data Center Ready Fully compatible with 6 Gb/s SAS/SATA devices, the VTrak E5000 gives users the ability to deploy 6 Gb/s and 12 Gb/s SAS/SATA HDDS and SSDs. Efficient power supplies provide up to 90% improved power efficiency, improving TCO by conserving power, reducing heat output and lower cooling costs. The E5000's flash arrays enable optimized speed for key enterprise applications that need high-speed transfer rates and reduced latency and thanks to its Intel multi-core Broadwell-DE based architecture providing ample processing power to achieve transfer speeds at line rate on both 16Gb Fibre Channel front-end interfaces and 12Gb SAS backend interfaces. Virtualization Ready Ready to confront any challenge in today's virtualized IT environment, the VTrak E5000 Series is certified with VMware vSphere, Citrix XenServer, Microsoft Hyper-V, Veeam, and DataCore SANsymphony. Virtualization enables dynamic storage allocations such that physical layers of storage can be utilized most effectively. As virtual machines continue to increase with more virtualized deployments, 16Gb Fibre Channel performance delivers the faster bandwidth needed for growing infrastructures.

Product Type	SAN Storage System
Product Series	E5000
Brand Name	Promise
Manufacturer	Promise Technology
Product Model	E5300FD
Product Name	VTrak E5300FD SAN Storage System
Product Line	VTrak
Manufacturer Part Number	E5300FDQS10
Manufacturer Website Address	http://www.promise.com
Environmentally Friendly	Yes
Environmental Certification	WEEERoHS
RAID Supported	Yes
Number of Controllers	2
RAID Levels	0, 1, 5, 6, 10, 50, 60
Controller Type	12Gb/s SAS
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Bays	12
Number of 3.5" Bays	12
Network (RJ-45)	Yes
Drive Interface	12Gb/s SAS
Fibre Channel	Yes
Total Hard Drive Capacity Installed	120 TB
Number of Hard Drives Supported	12
Number of Hard Drives Installed	12
Height	3.5"
Width	17.6"
Depth	20"
Rack Height	2U
Form Factor	Rack-mountable
Weight (Approximate)	54.70 lb
Protocols	TelnetLDAPSSHSNMPFCPCIM
Limited Warranty	3 Year
