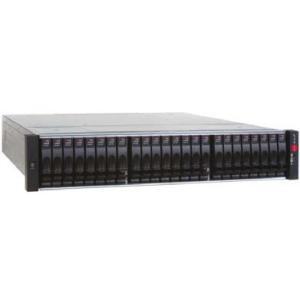

Quantum Dot Hill AssuredSAN SAN Array D3920CA07215DA 3920

The 3000 Series has many midrange capabilities such as energy saving drive-spin-down and AssuredRemote™ for remote replication. The 3000 series is easier than ever to use - featuring Wizards for installation, configuration and remote replication. Its easy to use RAIDar 2.0 interface streamlines management. Key applications include video post-production, streaming, databases, and other demanding tasks. In addition, the 3000 Series is NEBS and MIL SPEC 810G compliant and offer a rugged chassis. Remote replication software provides an easy path to data protection. Drive-spin-down reduces power consumption during non-peak hours. Support for mixed SAS, SATA, and SSD drives Leverages patented EcoStor™ battery-free cache backup eliminating battery replacement. NEBS Level 3 and MIL SPEC compliance ensures that our storage arrays excel for mobile computing, military intelligence gathering, and surveillance inside and outside the datacenter. GUI language support for Dutch, French, German, Italian, Japanese, Korean, Spanish, Simplified Chinese, Traditional Chinese VMware and Microsoft certified

Product Type	SAN Array
Product Series	3000
Brand Name	Quantum
Manufacturer	Quantum Corporation
Product Model	3920
Product Name	Dot Hill AssuredSAN 3920 SAN Array
Package Type	OEM
Product Line	AssuredSAN
Manufacturer Part Number	D3920CA07215DA
Manufacturer Website Address	http://www.quantum.com
Green Compliant	Yes
Green Compliance Certificate/Authority	WEEERoHS-6China RoHS
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Bays	24
Number of 3.5" Bays	No
Number of 5.25" Bays	No
Number of 2.5" Bays	24
Number of 2.5"/3.5" Bays	No
SAN Interface	Fibre ChanneliSCSI
Drive Interface	Serial Attached SCSI (SAS)
Total Hard Drive Capacity Supported	24 TB
Total Hard Drive Capacity Installed	7.20 TB
Total Solid State Drive Capacity Supported	24 TB
Number of Hard Drives Supported	24
Number of Hard Drives Installed	24
Number of Solid State Drive Supported	24
Number of Solid State Drive Installed	No
Height	3.5"
Width	17.6"
Depth	21.3"
Rack Height	2U
Form Factor	Rack-mountable
RAID Levels	0, 1, 3, 5, 6, 10, 50, JBOD
Controller Type	Serial Attached SCSI (SAS)
Limited Warranty	37 Month
