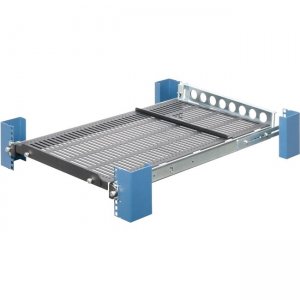

Rack Solutions Sliding Equipment Shelf with CMA (Shallow) 115-1892

RackSolutions equipment shelves are compatible with most 19" EIA standard server racks. Our equipment shelves have a 95 lb equipment capacity and will support a wide variety of electronic equipment. Computer equipment up to 22" deep can be supported on a 19 inch equipment shelf. The slide rails extend a full 18" on this shorter equipment shelf model. The shelf includes a removable front equipment stop bar, adjustable rear equipment stop bar, anti-slip mat and optional straps for securing equipment for transport or seismic applications. Cable management bars are optional, but extremely useful in managing cable slack when sliding the shelf in and out.

Product Type	Rack Shelf
Manufacturer Part Number	115-1892
Manufacturer Website Address	http://www.racksolutions.com
Manufacturer	Rack Solutions
Product Name	Sliding Equipment Shelf with CMA (Shallow)
Brand Name	Rack Solutions
Package Contents	1 x Partially Assembled Shelf 1 x Anti-Slip Mat 12"x15" 1 x 50" Velcro Strap for Cable Arm 2 x Rear Rack Brackets 1 x Removable Front Stop 1 x Adjustable Rear Stop 1 x Arm Extension Bracket 2 x Cable Management Arms 2 x Arm Attachment Brackets 4 x 8-32 x 3/8" Flat Head Screws 7 x 8-32 x 3/8" Pan Head Screws 7 x 8-32 Nuts 3 x 2.5" Clevis Pins & Cotter Pins (for Cable Mgmt) 8 x 12-24 x 1/2" Screws 8 x 10-32 x 1/2" Screws 8 x 12-24 Square Nuts 8 x 10-32 Cage Nuts
Country of Origin	United States
Assembly Required	Yes
Environmentally Friendly	Yes
Environmental Certification	RoHS
TAA Compliant	Yes
Form Factor	Rack-mountable
Length	22"
Rack Width	19"
Rack Height	1U
Width	16.5"
Depth	22"
Maximum Weight Capacity	95 lb
Rack Depth	28"
Product Color	Black Powder Coat
Application/Usage	Server
