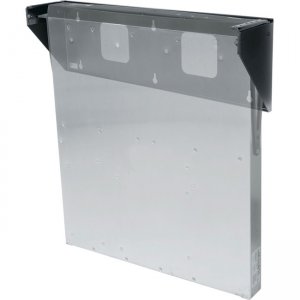

Rack Solutions 5U Vertical Wall Mount Rack, 30" Deep 180-5282

Our secure 5U vertical wall mount rack is a perfect place to secure small amounts of rack equipment, extending less than 10 inches from the wall and saving space. Rack mount equipment such as servers, patch panels, UPS systems, and network switches are compatible with this vertical wall mount rack. The vertical rack features a vented hinged door and hinged top panel, both featuring lockable security and accessibility to equipment. The tab on the locking hinged cabinet door must be pressed down to avoid damaging the equipment. There is an additional 2U mounting bracket, great for mounting patch panels up to 2.5 inches deep. The vented bottom of the server rack allows 2 standard 120mm fans to be mounted. The vertical wall solution is available in 23" and 30" vertical mount depths, the overall length of the racks are 29.7" and 36.7". The maximum weight capacity is up to 150 lbs of 19" equipment. The 5U vertical wall mount rack enclosure is PCI DSS compliant and ships fully assembled.

Product Type	Wall Mount
Manufacturer Part Number	180-5282
Manufacturer Website Address	http://www.racksolutions.com
Manufacturer	Rack Solutions
Product Name	5U Vertical Wall Mount Rack, 30" Deep
Brand Name	Rack Solutions
Application/Usage	Wall
Package Contents	5U Vertical Wall Mount Rack, 30" Deep Hardware
Country of Origin	United States
TAA Compliant	No
Weight (Approximate)	68.30 lb
Product Color	Black
Device Supported	Patch Panel Server UPS Network Switch
Maximum Load Capacity	150 lb
