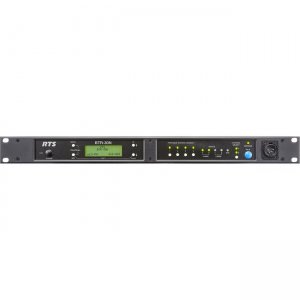

RTS Narrow Band 2-channel vhf/uhf Synthesized Wireless Intercom System BTR-30N-B10 A4M

The RTS BTR-30N Narrow Band 2-Channel VHF/UHF Synthesized Wireless Intercom System is a revolutionary product offered in today's ever-changing and shrinking RF environment. Providing a 25kHz of modulated bandwidth, the BTR-30N narrow band system allows more users per channel in the relatively unused VHF spectrum and a reduced footprint in the cramped UHF band. While providing excellent audio performance, the Narrow Band system provides all of the standard features of the RTS RadioCom BTR-80N system, such as DSP digital processing and Intelligent Power Control. Additional features include multiple selectable transmitter power outputs, selectable receiver squelch control, RF meter display on base station and beltpack displays, remote battery indicators on base station display, beltpack battery percentage display, low battery tone indicator on beltpack, AC or DC power input on base station, simultaneous 2-Wire and 4-Wire operation and the ability to expand a system to an unlimited number of users in half-duplex with the First-On-Latch-Out feature. The BTR-30N fits in a standard 19-inch equipment rack and is 1 (1) rack unit high. The TR-30N and TR-32N beltpacks are constructed of durable and lightweight magnesium and provide up to 10-12 Hours of operation on AA alkaline batteries.

Product Type	Intercom System
Manufacturer Part Number	BTR-30N-B10 A4M
Manufacturer Website Address	http://www.bosch.com
Manufacturer	The Bosch Group
Product Name	Narrow Band 2-channel vhf/uhf Synthesized Wireless Intercom System
Product Line	RadioCom
Product Series	BTR-30N
Brand Name	RTS
Connectivity Technology	Wireless
Weight (Approximate)	7.72 lb
Form Factor	Rack-mountable
Height	1.8"
Width	13.8"
Depth	19"
Input Voltage	120 V AC 230 V AC
Power Source	AC Supply
Number of Channels	2
Channel Frequency	572 MHz
Frequency Band Type	VHF/UHF
