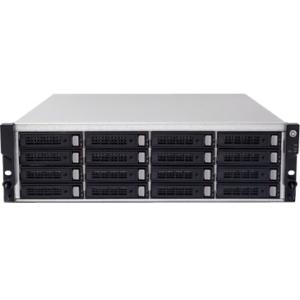

Sans Digital EliteRAID SAN Server KT-ER316I+BDG ER316I+BDG

The EliteRAID ER316I+BDG is the latest hardware RAID storage to EliteRAID iSCSI solution. ER316I+BDG is a 3U 16-bay quad channel iSCSI storage supporting advanced features, such as trucking and LACP networking support, Multiple Channel per Session (MC/S), iSCSI jumbo frame and Microsoft MPIO. SCSI-3 persistent target is available for clustering server application. Built-in Web GUI management interface and event notification E-mail, SNMP trap, browser pop-up Windows, Syslog and Windows Messenger allow administrators to monitor unit status with ease. Besides RAID 5 and RAID 6 support, Mirroring (RAID 1) and Striping (RAID 0), ER316I+BDG supports RAID 6 to protect against up to two hard drive defects. Advance feature includes online RAID migration, online RAID expansion and MPIO supported. Supported in Windows, MAC and Linux operating system. Virtualization platorm is also supported in VMware ESX server (3.5/4.0/4.1), Microsoft Hyper-V and Citrix Xen. Utilizing SATA interfaces, and dual gigabit Ethernet port (up to 400MB/s), the ER316I+BDG is guaranteed to achieve the best performance with fail-safe file protection.

Product Type	SAN Server
Brand Name	Sans Digital
Manufacturer	Sans Digital
Product Model	ER316I+BDG
Product Name	EliteRAID ER316I+BDG SAN Server
Product Line	EliteRAID
Manufacturer Part Number	KT-ER316I+BDG
Manufacturer Website Address	http://www.sansdigital.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	EliteRAID ER316I+BDG SAN Server 1 x Power Cord 2 x Hard Drive Keys 16 x Removable Tray Modules 1 x Quick Installation Manual
Processor Manufacturer	Intel
Processor Model	IOP
RAID Supported	Yes
RAID Levels	0, 1, 3, 5, 6, 10, 30, 50, 60, 0+1, JBOD
Controller Type	Serial ATA
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Bays	16
Number of 3.5" Bays	16
Network (RJ-45)	Yes
Number of Hard Drives Installed	No
Height	5.3"
Width	19"
Depth	23"
Rack Height	3U
Form Factor	Rack-mountable
Weight (Approximate)	46 lb
Memory Technology	DDR2 SDRAM
Standard Memory	2 GB
Protocols	iSCSILACPHTTPSSHTelnetSNMPiSNS
Limited Warranty	3 Year
