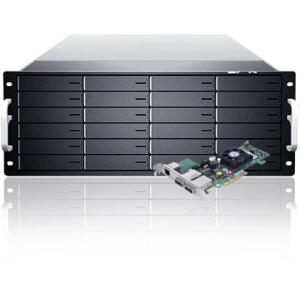

Sans Digital Drive Enclosure KT-ES424X6+BHP ES424X6+BHP

The EliteSTOR ES424X6+BHP is a 4U 24 bay 6G RAID storage rackmount for high capacity storage solutions. The ES424X6+BHP is bundled with a high-performance dual core RAID controller card that offloads complicated RAID calculations from the computer or the enclosure to the dedicated RAID engine. High performance can be achieved with a lower cost of ownership compared to RAID embedded subsystems. RAID setup and maintenance can be controlled via built-in Web Browser interfaces, and the unit is supportive of e-mail notications and SNMP trap. Utilizing high bandwidth 2400MB/s mini-SAS (SFF-8088) cabling, the ES424X6+BHP supports SAS or SATA hard drives to deliver superior read / write speeds that are crucial in performance-driven environments such as the video editing industry. The mini-SAS connection combines twenty-four hard drive connections into a single cables, reducing possible points of failures while preserving uninterrupted data transfer. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. System status information such as the hard drive, power supply, and cooling fan status are provided by the LED. All necessary hardware comes standard including the mini-SAS cable, hard drive tray modules and built-in mounting rail. The ES424X6+BHP also supports SATA drives, allowing users the option to choose between high performance and high capacity storage solutions.

Product Type	Drive Enclosure
Brand Name	Sans Digital
Manufacturer	Sans Digital
Product Model	ES424X6+BHP
Product Name	ES424X6+BHP Drive Enclosure
Product Line	EliteSTOR
Manufacturer Part Number	KT-ES424X6+BHP
Manufacturer Website Address	http://www.sansdigital.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	ES424X6+BHP Drive Enclosure PCIe 2.0 x8 RAID Controller Card Mini-SAS Cable Cooling Fan Tray Modules Built-in Mounting Rail
Number of Total Expansion Bays	24
Number of 3.5" Bays	24
Number of 5.25" Bays	No
Number of 2.5" Bays	No
Number of 2.5"/3.5" Bays	No
Number of 1.8" Bays	No
Number of Hard Drives Supported	24
Number of Hard Drives Installed	No
Cooling Fan	Yes
Height	7"
Width	19"
Depth	23"
Rack Height	4U
Form Factor	Rack-mountable
Weight (Approximate)	54 lb
Drive Interface	6Gb/s SASSerial ATA/600
Host Interface	Mini-SAS
Limited Warranty	3 Year
