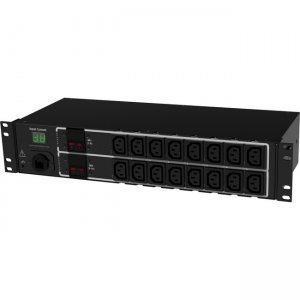

Server Technology PRO1 16-Outlets PDU C1W16HR-2CAA5BAC

The Server Technology® PRO1 Switched Rack PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO1 Switched "Master" PDU can be connected to as many as three PRO1 Switched "Link" PDUs to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	C1W16HR-2CAA5BAC
Manufacturer Website Address	http://www.servertech.com
Manufacturer	Server Technology, Inc
Product Model	C1W16HR-2CAA5BAC
Product Name	PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU
Product Series	PRO1
Brand Name	Server Technology
Management	SSH SMTP Syslog HTTP/HTTPS TLSv1.2 SSHv2 Telnet SNMPv2c and v3 (GET, SET, Traps) IPv4 and IPv6 LDAPv3/LDAPS TACACS+ RADIUS FTP/SFTP
Package Contents	PRO1 C1W16HR-2CAA5BAC 16-Outlets PDU Mounting Brackets
Environmentally Friendly	Yes
Mount Type	Rack-mountable
Rack Height	2U
Height	3.5"
Width	17.2"
Depth	7.1"
Mounting Orientation	Horizontal
Input Voltage	230 V AC
Input Current	30 A
Power Rating (Watt)	5000 W
Protection Type	Overcurrent Protection Double Pole
Plug/Connector Type	NEMA L6-30P
Phase	Single Phase
Receptacle Type	IEC 60320 C13
PDU Type	Switched
Receptacle Detail	16 x IEC 60320 C13
Limited Warranty	2 Year
