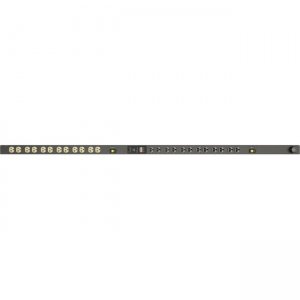

Server Technology Switched PDU - 2.8kW C1W16VS-1DFA17A5

The Server Technology® Switched PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The Switched "Master" PDU can be connected to a Switched "Link" PDU to extend the network access to the redundant or secondary power feed.

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	C1W16VS-1DFA17A5
Manufacturer Website Address	http://www.servertech.com
Manufacturer	Server Technology, Inc
Product Model	C1W16VS-1DFA17A5
Product Name	Switched PDU - 2.8kW, C1W16VS-1DFA17A5
Product Series	PRO1
Brand Name	Server Technology
Management	SSH SMTP Syslog HTTP/HTTPS TLSv1.2 SSHv2 Telnet SNMPv2c and v3 (GET, SET, Traps) IPv4 and IPv6 LDAPv3/LDAPS TACACS+ RADIUS FTP/SFTP
Country of Origin	United States
Mount Type	Rack-mountable
Rack Height	0U
Height	44.5"
Width	1.8"
Depth	2.3"
Input Voltage	120 V AC
Output Voltage	120 V AC
Input Current	30 A
Power Rating (Watt)	2800 W
Protection Type	Fuse
Plug/Connector Type	NEMA L5-30P
Phase	Three Phase
Receptacle Type	NEMA 5-20R
PDU Type	Switched
Receptacle Detail	16 x NEMA 5-20R
Limited Warranty	2 Year
