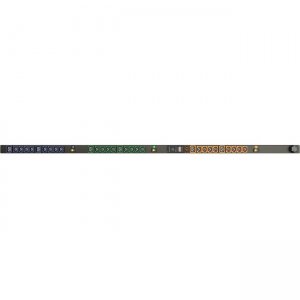

Server Technology Smart PDU - 8.6kW C2S36CE-YCMFAM66

The Server Technology® PRO2 Smart PDU provides local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Smart "Master" PDU can be connected to as many as three (with optional module) PRO2 Smart "Link" PDU to extend the network access to the redundant or secondary power feed without the risks of a daisy chain linking configuration.

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	C2S36CE-YCMFAM66
Manufacturer Website Address	http://www.servertech.com
Manufacturer	Server Technology, Inc
Product Model	C2S36CE-YCMFAM66
Product Name	Smart PDU - 8.6kW, C2S36CE-YCMFAM66
Product Series	PRO2
Brand Name	Server Technology
Management	SSH SMTP Syslog HTTP/HTTPS TLSv1.2 SSHv2 Telnet SNMPv2c and v3 (GET, SET, Traps) IPv4 and IPv6 LDAPv3/LDAPS TACACS+ RADIUS FTP/SFTP
Country of Origin	United States
Mount Type	Rack-mountable
Height	70"
Width	2.2"
Depth	2.5"
Input Voltage	230 V AC
Output Voltage	208 V AC
Input Current	30 A
Power Rating (Watt)	8600 W
Protection Type	Fuse Double Pole
Plug/Connector Type	NEMA L21-30P
Phase	Three Phase
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA 5-20R
PDU Type	Monitored
Receptacle Detail	24 x IEC 60320 C13 12 x IEC 60320 C19 3 x NEMA 5-20R
Limited Warranty	2 Year
