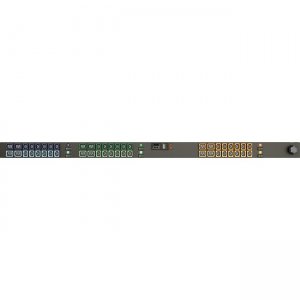

Server Technology Switched POPS PDU - 17.3kW STV-6509Z

The Server Technology® PRO2 Switched POPS PDU provides control of outlet power and local LED input current monitoring, allowing IT personnel to determine safe levels of loading on a per-phase basis while installing equipment into the rack/cabinet. The integral PIPS® and POPS® technology provides billing-grade accurate measurement of current, voltage, active power, apparent power, power factor, crest factor, and accumulated energy at the input and at each output. These power data points, along with temperature and humidity measurements (provided via optional probes), are accessible through the built-in Web and CLI interfaces as well as through SNMP. The PRO2 Switched POPS Master" PDU can be connected to as many as three (with optional module) PRO2 Switched POPS "Link"

Network (RJ-45)	Yes
Product Type	PDU
Manufacturer Part Number	STV-6509Z
Manufacturer Website Address	http://www.servertech.com
Manufacturer	Server Technology, Inc
Product Model	STV-6509Z
Product Name	Switched POPS PDU - 17.3kW, STV-6509Z
Product Line	PRO2
Product Series	Switched
Brand Name	Server Technology
Package Contents	Switched POPS PDU - 17.3kW, STV-6509Z Button Mounts
Country of Origin	United States
Form Factor	Rack/Tower
Mount Type	Cabinet-mountable Rack-mountable
Height	70"
Width	2.2"
Depth	2.3"
Input Voltage	415 V
Input Current	30 A
Power Rating (Watt)	17.30 kW
Protection Type	Overcurrent Protection Overload Protection Circuit Protection
Plug/Connector Type	NEMA L22-30P
Phase	Three Phase
Receptacle Type	IEC 60320 C13 IEC 60320 C19
PDU Type	Switched
Receptacle Detail	30 x IEC 60320 C13 6 x IEC 60320 C19
Plug/Connector Detail	1 x NEMA L22-30P
Limited Warranty	2 Year
