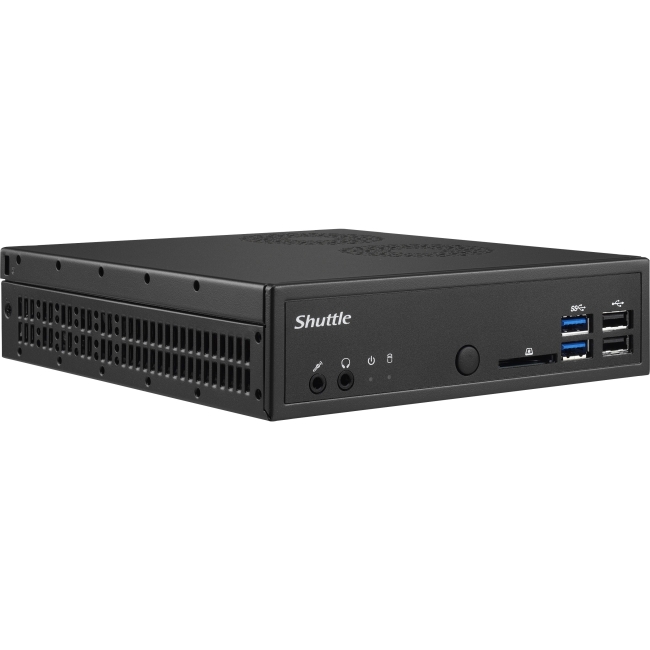

Shuttle XPC Barebone System DH110

Drive 4K and Rich Interactive Content with Intel® skylake platformFocused on 4K vertical markets, Shuttle launches a new generation slim PC DH110, equipped with Intel® H110 chipsets support the latest Intel® 6th generation Skylake LGA1151 65W processors. With Intel® built-in HD graphics engine, DH110 can support 4K/Ultra HD video playback. With a body thickness of only 43mm and VESA mountable design, the DH110 make it easy to fit commercial applications with limited space. Thanks to its robust metal chassis and a wide ambient temperature range from 0 to 50 degree, the DH110 runs reliably cool and stable for a long time operation. With built-in USB 2.0, RS232/422/485, and PS/2 I/O ports, the DH110 has strong connectivity for peripherals to meet the demands of vertical applications.Support Intel® 6th Generation Core™ processorEquipped with new LGA1151 socket, the DH110 supports for Intel® sixth-generation (Skylake) Core™ i3/i5/i7, Pentium®, and Celeron® 65W processors. The integrated new generation Intel® HD Graphics is significantly increased CPU or GPU performance. Compared to the previous Haswell/Haswell Refresh processor, the new processor is saved more power.Equipped with Intel® 100 series ChipsetThe DH110 is equipped with Intel® H110 chipset and supports dual-channel DDR3L 1600 with the maximum memory capacity of up to 32GB (16GBx2). Able to support two Intel® Gigabit LAN interfaces, native SATA 6Gbps, and USB3.0 high-speed storage interfaces, providing superb data transfer speedSlim design and Easy assemblyThe DH110 features a 1.3-liter slim design and body thickness of only 43mm with significantly less cables and no daughter board. This makes for easy assembly, enhanced thermal efficiency, and system stability due to increased airflow.Heat pipe cooling technologyThe DH110 features Shuttle's exclusive heat pipe cooling module with smart fan design. Smart ventilation keeps the system running quiet and cool for long term operation.Industrial Solid Capacitors = High StabilityThe DH110 uses industrial capacitors in order to meet the environmental operation demands of commercial applications. Its rugged design allows for 24/7 stable operation over long periods of time - even in 50°C environments.Support 4K Ultra HDThe DH110 provides HDMI and DisplayPort video outputs support 4K high resolution (3840x2160), four times the resolution of Full HD.Support dual independent displaysThe DH110 provides one DisplayPort and one HDMI video outputs to support dual independent screens. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.Support two M.2 expansion slotsThe DH110 is built-in one M.2 2260/2242 with type M and one M.2 2230 type A/E slots to install M.2 SSD and a WiFi card or other compatible devices, proving a strong expansion capacity.Support dual independent displaysThe DH110 provides one DisplayPort and one HDMI video outputs to support dual independent screens. Use an adaptor to convert HDMI into DVI interface and DisplayPort into HDMI or DVI interface for diversified signal selection.

Product Type	Barebone System
Brand Name	Shuttle
Manufacturer	Shuttle, Inc
Product Model	DH110
Product Name	XPC DH110 Barebone System
Product Line	XPC
Manufacturer Part Number	DH110
Manufacturer Website Address	http://www.us.shuttle.com
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	H110 Express
Processor Socket	Socket H4 LGA-1151
Processor Supported	Core i7Core i3Core i5CeleronPentium
Graphics Controller Manufacturer	Intel
Graphics Controller Model	HD graphics
Number of SATA Interfaces	1
Total Number of USB Ports	6
Number of USB 3.0 Ports	4
Number of Internal 2.5" Bays	1
Number of Total Expansion Bays	1
Number of Total Expansion Slots	2
Number of Total Memory Slots	2
Memory Standard	DDR3L-1600/PC3-12800
Memory Technology	DDR3L SDRAM
Maximum Memory	16 GB
Ethernet Technology	Gigabit Ethernet
Maximum Power Supply Wattage	90 W
Input Voltage	120 V AC230 V AC
Height	1.7"
Width	6.5"
Depth	7.5"
Form Factor	Slim PC
Operating System Supported	Windows 7Windows 8.1Windows 10Linux
Controller Type	Serial ATA/600
