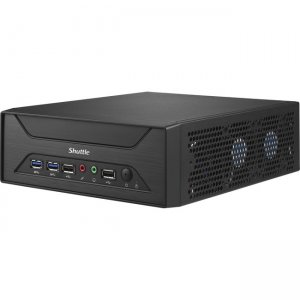

Shuttle XPC slim Barebone XH270

Powerful 3-litre PC offers space for four 2.5" drives plus M.2-SSD The ultra-compact Shuttle XPC slim Barebone XH270 comes in a robust metal chassis and can be used in many ways. With three concurrently usable graphics ports and numerous USB ports, it is highly flexible for office and media applications and supports a huge range of processors too. Its COM port and the practical "always-on-jumper" also makes it interesting for industrial environments. Special highlights include support for up to four 2.5" drive bays and one M.2-2280 slot for NVMe drives. This can make it a mini server PC with RAID 10 support. Plus, there are two Intel network ports that support teaming mode. The XH270 is the perfect basis for a power-efficient and reliable system for a wide range of applications. The built-in heatpipe cooling ensures the system runs quietly at maximum stability.

Number of SATA Interfaces	4
Total Number of USB Ports	8
Number of USB 3.0 Ports	4
Controller Type	Serial ATA/600
RAID Supported	Yes
Graphics Controller Manufacturer	Intel
Graphics Controller Model	HD graphics
Product Type	Barebone System
Manufacturer Part Number	XH270
Manufacturer Website Address	http://www.us.shuttle.com
Manufacturer	Shuttle, Inc
Product Model	XH270
Product Name	XPC slim Barebone XH270
Product Line	XPC slim
Brand Name	Shuttle
Number of Internal 2.5" Bays	4
Number of Total Expansion Bays	4
Maximum Memory Supported	32 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-2400/PC4-19200
Number of Total Memory Slots	2
Country of Origin	China
Energy Star	Yes
Ethernet Technology	Gigabit Ethernet
Weight (Approximate)	4.85 lb
Form Factor	Slim PC
Height	2.8"
Width	7.9"
Depth	9.4"
Product Color	Black
Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	120 W
Limited Warranty	3 Year
Processor Supported	Core i7 Core i3 Core i5 Celeron Pentium
Processor Socket	Socket H4 LGA-1151
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	H270
Operating System Supported	Linux Windows 7 x64 Windows 8.1 x64 Windows 10 x64
