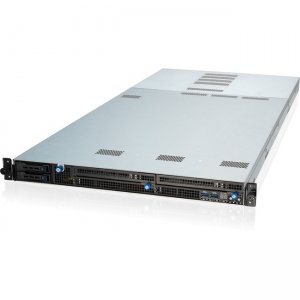

Supermicro SuperServer (Black) SYS-5019S-ML 5019S-ML

Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.

Product Type	Barebone System
Brand Name	Supermicro
Manufacturer	Supermicro Computer, Inc
Product Model	5019S-ML
Product Name	SuperServer 5019S-ML (Black)
Product Line	SuperServer
Manufacturer Part Number	SYS-5019S-ML
Manufacturer Website Address	http://www.supermicro.com
Green Compliant	Yes
Green Compliance Certificate/Authority	RoHS
Package Contents	SuperServer 5019S-ML (Black) 1 x Super X11SSH-F Motherboard 1 x 1U Chassis 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat 1 x 5019S-ML,QRG,HF,RoHS/REACH 1 x RSC-RR1U-E16 with PCI-E x16 output 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply
64-bit Processing	Yes
Chipset Manufacturer	Intel
Chipset Model	C236
Number of Processors Supported	1
Processor Socket	Socket H4 LGA-1151
Processor Supported	XeonCore i3
Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400
Number of SATA Interfaces	2
Total Number of USB Ports	4
Number of USB 3.0 Ports	2
Number of Power Supplies Installed	1
Maximum Power Supply Wattage	350 W
Input Voltage	120 V AC230 V AC
Number of Total Memory Slots	4
Memory Standard	DDR4-2133/PC4-17000
Memory Technology	DDR4 SDRAM
Maximum Memory	64 GB
RAID Supported	Yes
Controller Type	Serial ATA/600
Ethernet Technology	Gigabit Ethernet
Number of Total Expansion Slots	2
Number of PCI Express x8 Slots	1
Height	1.7"
Width	17.2"
Depth	14.4"
Color	Black
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	8.44 lb
Limited Warranty	3 Year
