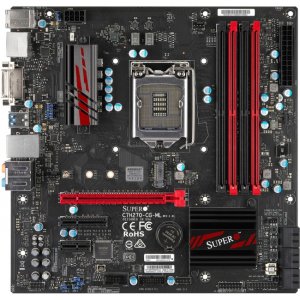

Supermicro Desktop Motherboard MBD-C7H270-CG-ML-O C7H270-CG-ML

7th Generation Core™ Processor Based Motherboards Z270/H270/Q270/B250 chipset / Socket H4 Boards Supermicro's single processor Socket H4 designs feature the Intel® Z270/H270/Q270/B250 chipset which support the Intel® 7th Generation Core™ i7/i5/i3 processor family. With outstanding features that include up to 64GB of fast DDR4 DRAM in 4 DIMMS, USB 3.0/USB 3.1, PCI-E 3.0 M.2, PCI-E 3.0 U.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.

Product Type	Desktop Motherboard
Brand Name	Supermicro
Manufacturer	Supermicro Computer, Inc
Product Model	C7H270-CG-ML
Product Name	C7H270-CG-ML Desktop Motherboard
Package Type	Retail
Manufacturer Part Number	MBD-C7H270-CG-ML-O
Manufacturer Website Address	http://www.supermicro.com
Packaged Quantity	1
Environmentally Friendly	Yes
Environmental Certification	RoHSWEEE
Chipset Manufacturer	Intel
Chipset Model	H270
Processor Socket	Socket H4 LGA-1151
Processor Supported	Core i7Core i3Core i5
Total Processor Supported	1
Number of Memory Slots	4
Memory Form Factor	UDIMMDIMM
Memory Speed Supported	2.40 GHz
Memory Technology	DDR4 SDRAM
Maximum Memory	64 GB
Audio Channels	7.1
Gigabit Ethernet	Yes
Number of SATA Interfaces	6
Total Number of Onboard USB Ports	4
Number of Onboard USB 3.0 Ports	2
Number of M.2 Interfaces	1
Number of PCI Express x1 Slots	1
Number of Total Expansion Slots	3
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	1
Total Number of PCI Express Slots	3
RAID Supported	Yes
RAID Levels	10510
Controller Type	Serial ATA/600
HDMI	Yes
DVI	Yes
DisplayPort	Yes
Total Number of USB Ports	6
Number of USB 3.0 Ports	4
S/PDIF	Yes
Width	9.6"
Depth	9.6"
Form Factor	Micro ATX
Limited Warranty	1 Year
