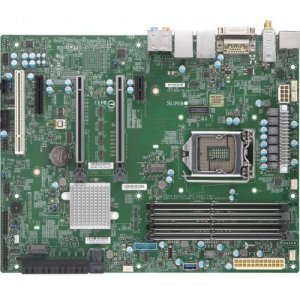

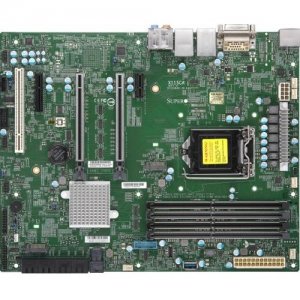

Supermicro Workstation Motherboard MBD-X11SCA-O X11SCA

Supermicro Workstation Motherboard MBD-X11SCA-O X11SCA
Price $397.88
Manufacturer: Supermicro
Mfg Number: MBD-X11SCA-O
SKU:
Model: X11SCA
Condition: New
UPC: 672042323975
Accessories
Description
UP Xeon® Motherboards - Socket H4 (LGA 1151) Xeon® E-2100 Boards / Socket H4 (LGA 1151) Supermicro's new X11SCA workstation motherboard comes in a standard ATX form factor packed with features and expandability options including 4k video support. Optimized for the latest Xeon E processors, this platform supports up to 64GB of either ECC or non-ECC DDR4-2666 memory, triple displays with DisplayPort 1.2, HDMI 2.0, DVI-D; dual M.2, U.2, dual GbE LAN ports, and USB 3.1 Gen 2. In addition, there is a front panel USB-C header on the X11SCA motherboard with different versions to add either gigabit wireless 802.11ac with Bluetooth 5.0 (X11SCA-W) or Supermicro IPMI 2.0 with an additional VGA port (X11SCA-F).
Specifications
HDMI Yes
DVI Yes
DisplayPort Yes
Total Number of USB Ports 4
Number of USB 3.1 Ports 4
Product Type Workstation Motherboard
Manufacturer Part Number MBD-X11SCA-O
Manufacturer Website Address http://www.supermicro.com
Packaged Quantity 1
Manufacturer Supermicro Computer, Inc
Product Model X11SCA
Product Name X11SCA Workstation Motherboard
Package Type Retail
Brand Name Supermicro
Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 5
Number of PCI Express x4 Slots 1
Number of PCI Express x16 Slots 2
Total Number of PCI Express Slots 4
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Number of Memory Slots 4
Memory Form Factor DIMM UDIMM
Memory Speed Supported 2666 MHz
Package Contents
  • X11SCA Workstation Motherboard
  • 6 x SATA 3 Cable
  • 1 x X11SCA Series IO Shield
  • 2 x M.2 SSD Folder
  • 1 x X11SCA Series Quick Reference Guide
Environmentally Friendly Yes
Environmental Certification RoHS
Gigabit Ethernet Yes
Form Factor ATX
Width 12"
Depth 9.6"
Processor Supported Celeron Core i3 Pentium Xeon
Total Processor Supported 1
Processor Socket Socket H4 LGA-1151
Chipset Manufacturer Intel
Chipset Model C246
Onboard Video CPU Dependent Video
Limited Warranty 1 Year
RAID Levels 0 1 5 10
Controller Type Serial ATA/600
RAID Supported Yes
Number of SATA Interfaces 8
Total Number of Onboard USB Ports 6
Number of M.2 Interfaces 2
Number of Onboard USB 3.1 Ports 4
